Los resultados que están relacionados con la malla de volumen finito del modelo se muestran como "Cantidades de campo de flujo". Estos incluyen los resultados del campo de presión, campo de velocidad y campo de turbulencia. You can set the type of results by clicking the , , , o button in the "Results - Flow Field Quantities" area of the panel.

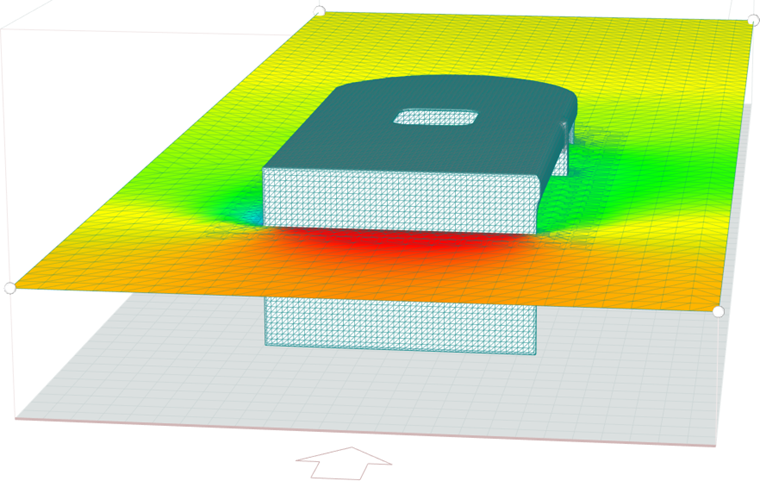

Campo de presiones
The pressure field represents a section through the wind tunnel that illustrates the wind pressure distribution of the air flow. "Drag" is represented by positive magnitudes, "lift" by negative ones.
The section is presented in one of the global planes (XY, XZ, YZ) that can be controlled by the corresponding buttons in the toolbar. To evaluate pressure fields at specific sections through the model, use the "Slicer" options described in Chapter Slicer.

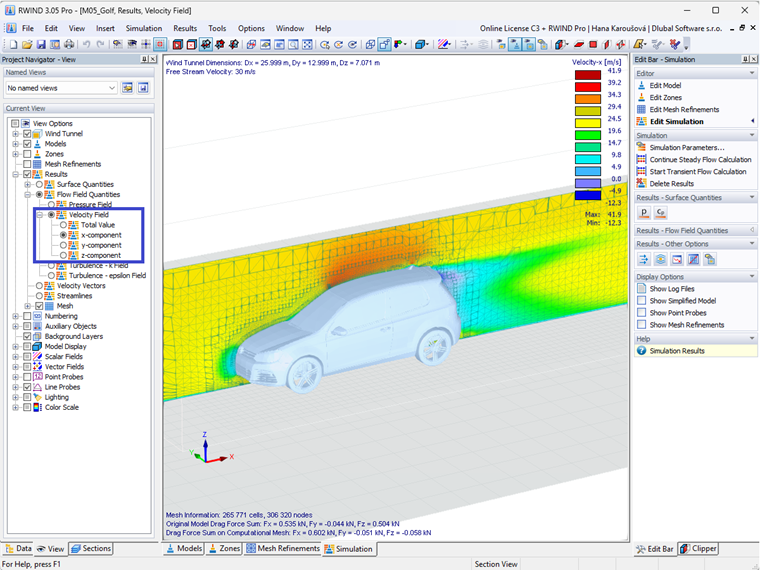

Campo de velocidades
The velocity field represents a section through the wind tunnel illustrating the wind speed distribution. It enables you to evaluate the scalar field of wind velocity on your model.
The section is displayed in one of the global planes (XY, XZ, YZ) that can be controlled as described above.

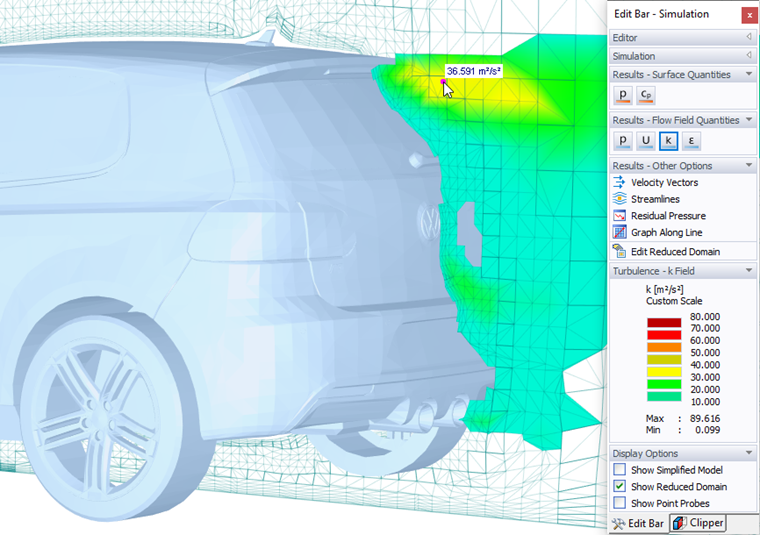

Turbulence - k Field
These results show a section through the wind tunnel illustrating the distribution of turbulences with respect to the turbulence kinetic energy k (see Chapter Turbulence). By moving the slicer plane, you can examine the effects of turbulence at specific locations.

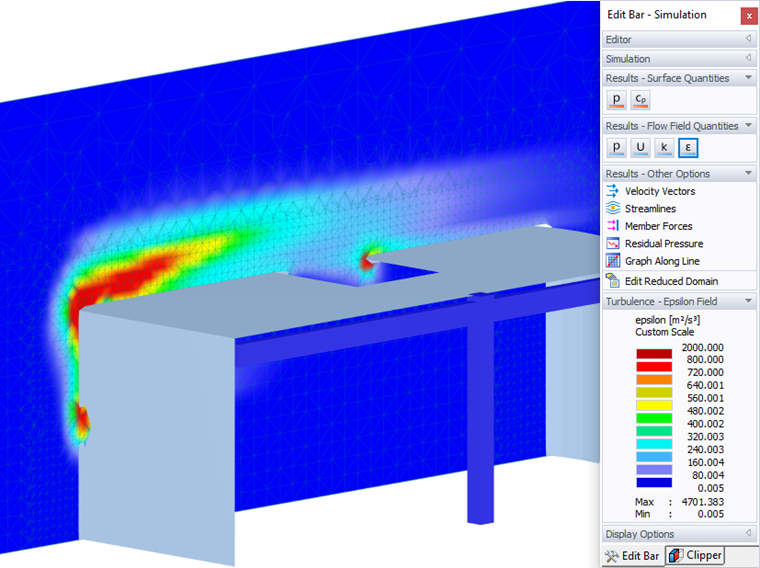

Turbulence - ε Field
Alternatively, the results of the turbulent energy dissipation, the turbulence field ε, can be displayed. A detailed description of the turbulent quantities can be found in Chapter Turbulence, an introduction to turbulence, see Chapter Note About Turbulence.
