Time History Analysis Results on Surfaces

After running a time history analysis, I am not able to see all results on surfaces. Is there a possibility to show them?


Answer:

In the results of the RF‑/DYNAM Pro add-on module, "Basic Internal Forces" and "Basic Stresses" on surfaces are only provided. However, you can use the option to export the results in a result combination to display all results after the time history analysis.

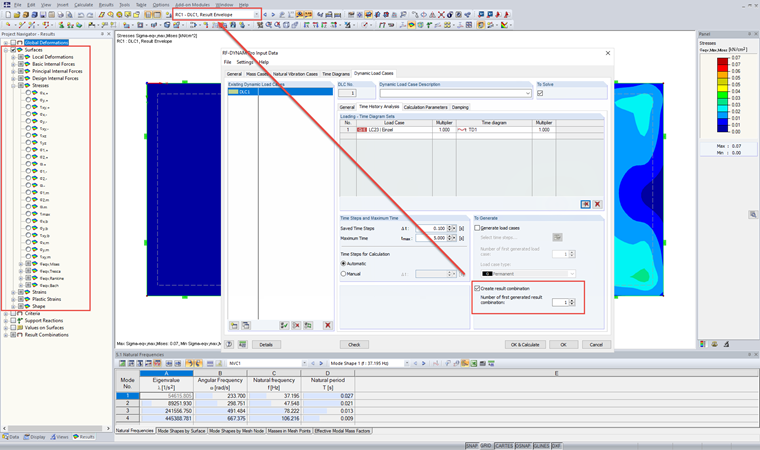

Simply use this option to create a result combination in the add-on module as shown in Image 01, and show the results in the graphic. All results, such as "Design Internal Forces" or "Stresses," are available then.


Author

Ms. Effler is responsible for the development of products for dynamic analysis and provides technical support for our customers.

References
  1. Dlubal Software. (2020). Manual RF-DYNAM Pro. Tiefenbach: Dlubal Software.
