Due to the FE method, singularity points are displayed in a limited area as a concentration of the stress-dependent result values. They occur, among other things, at point-shaped load application areas in the model.
This model was used to show the possibilities for dealing with such singularity locations.
Model Used in

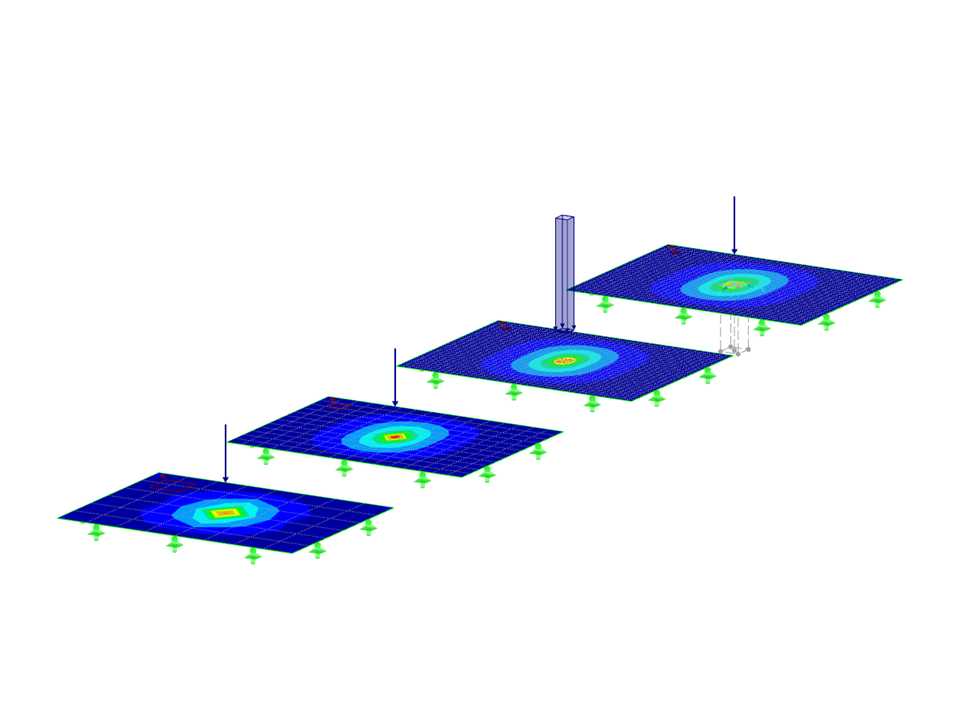

Surface with Different FE Mesh Sizes
| Number of Nodes | 20 |
| Number of Lines | 16 |
| Number of Members | 0 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 18.840 tons |
| Dimensions (Metric) | 4.000 x 0.000 x 18.000 m |
| Dimensions (Imperial) | 13.12 x 0 x 59.06 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
