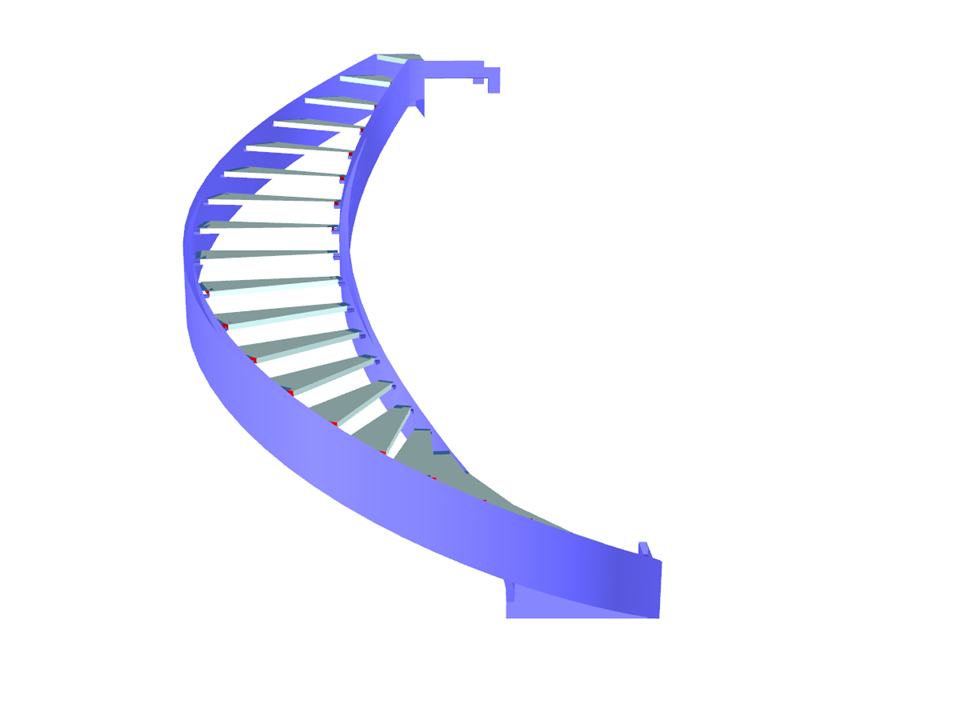

The subject of the design is a steel-glass structure of an interior spiral staircase. The staircase is an important architectural detail of the interior. Because of this, the structural design closely followed the architectural requirements with great emphasis on the detail purity. The interior spiral staircase is located inside an educational, training, and rehabilitation center in the city of Zlín, Czech Republic.
Structural Analysis: KONSTAT s.r.o. | www.konstat.cz
Architectural design: CUBE DESIGN s.r.o. | www.cubedesign.sk
Structural Analysis: KONSTAT s.r.o. | www.konstat.cz
Architectural design: CUBE DESIGN s.r.o. | www.cubedesign.sk
Steel Spiral Staircase
No Download Possible
Customer Project / View Only
Number of Nodes | 743 |
Number of Lines | 476 |
Number of Members | 268 |
Number of Surfaces | 74 |
Number of Load Cases | 1 |
Total Weight | 1.479 tons |
Dimensions (Metric) | 6.179 x 6.112 x 6.936 m |
Dimensions (Imperial) | 20.27 x 20.05 x 22.76 feet |
Program Version | 5.24.01 |
