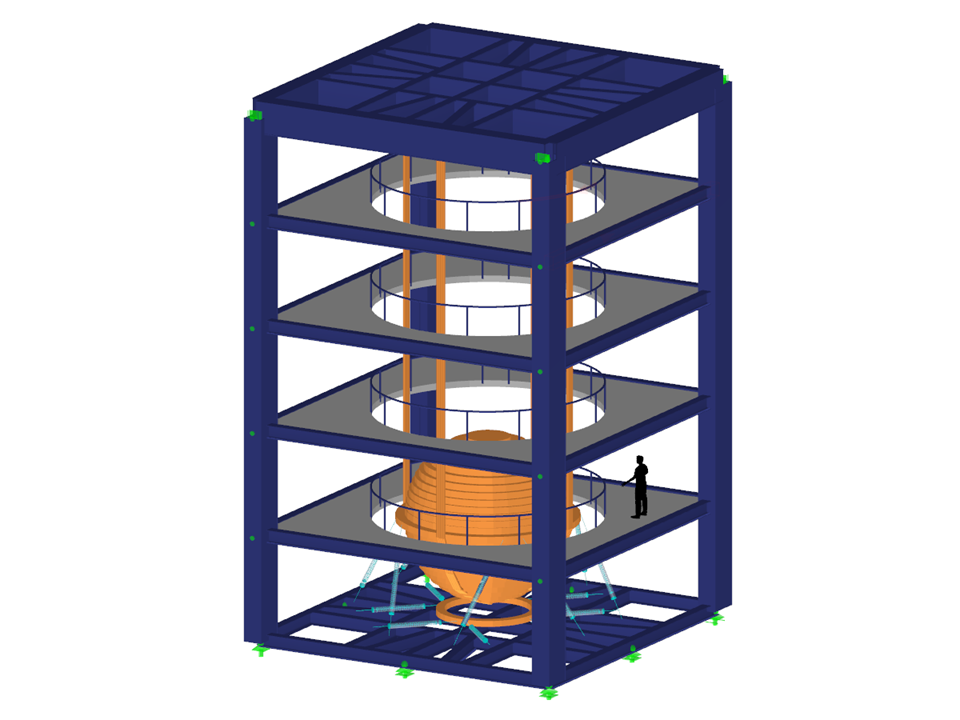

Vibration dampers can be used to eliminate the resonant frequency of buildings. Such a vibration damper is used in one of the world's tallest skyscrapers, the "Taipei 101". The oscillation of the sphere counteracts the oscillation of the building.
Model Used in
- WIN | 04/2024 – What's New in RFEM 6 and RSTAB 9?
- Dynamic and Seismic Analysis of Structures | RFEM 6 & RSTAB 9 by Dlubal Software
- WIN | 05/2024 – What's New in RFEM 6 and RSTAB 9?
- Dynamic Calculations with Dlubal Software
- Virtual Reality (VR) & Augmented Reality (AR) and Structural Models - Is That Possible?
Tuned Mass Damper
Number of Nodes | 700 |
Number of Lines | 840 |
Number of Members | 667 |
Number of Surfaces | 30 |
Number of Solids | 0 |
Number of Load Cases | 3 |
Number of Load Combinations | 1 |
Number of Result Combinations | 0 |
Total Weight | 805.978 tons |
Dimensions (Metric) | 9,928 x 16,200 x 9,928 m |
Dimensions (Imperial) | 32.57 x 53.15 x 32.57 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
