A family house with a remarkable roof structure was build in Austria in 2014. The circular centerpiece of the building is covered by a tent roof. It was designed as a visible timber structure, and together with the light‑flooded glass facade, it is a real eye‑catcher.
Just two Dlubal customers were involved in the project. The engineering office Wagner used RSTAB to create the structural analysis for the roof structure, and WIEHAG GmbH was responsible for the timber structures.
Roof Structure
Ing.-Büro Wagner GmbH, Gangkofen, Germany
[email protected]

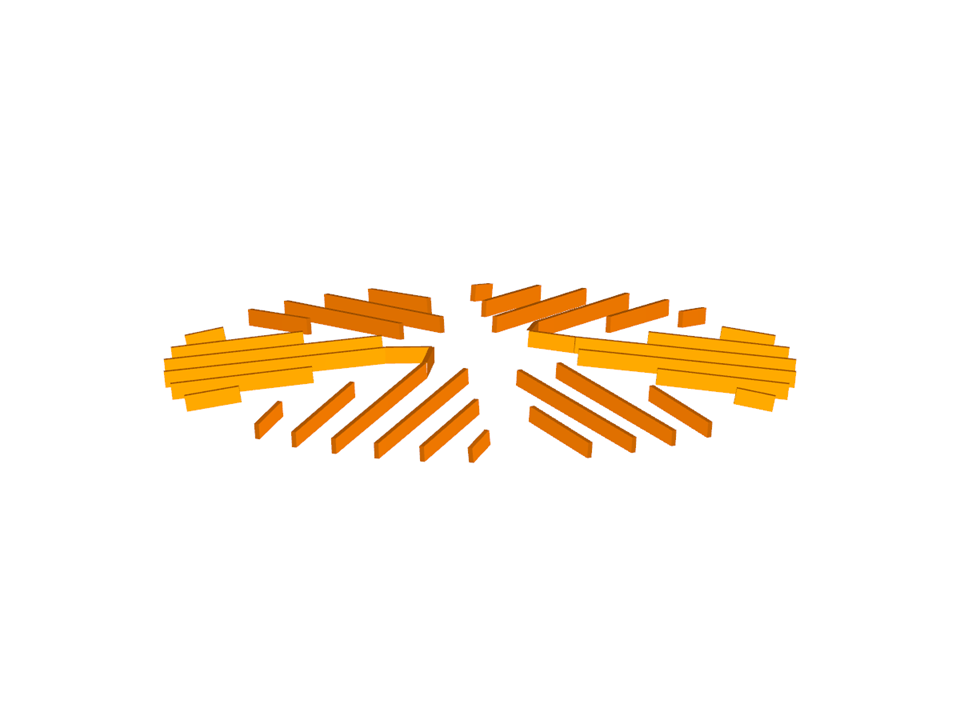

RSTAB model of tented roof with two adjoining pergolas (© IB Wagner)
Just two Dlubal customers were involved in the project. The engineering office Wagner used RSTAB to create the structural analysis for the roof structure, and WIEHAG GmbH was responsible for the timber structures.
Roof Structure
Ing.-Büro Wagner GmbH, Gangkofen, Germany
[email protected]
RSTAB model of tented roof with two adjoining pergolas (© IB Wagner)
Beams of Tented Roof Structure for Family House
No Download Possible
Customer Project / View Only
| Number of Nodes | 259 |
| Number of Members | 329 |
| Number of Load Cases | 9 |
| Number of Load Combinations | 159 |
| Number of Result Combinations | 2 |
| Total Weight | 8.052 tons |
| Dimensions (Metric) | 16.642 x 24.984 x 5.125 m |
| Dimensions (Imperial) | 54.6 x 81.97 x 16.81 feet |
| Program Version | 7.04.17 |
