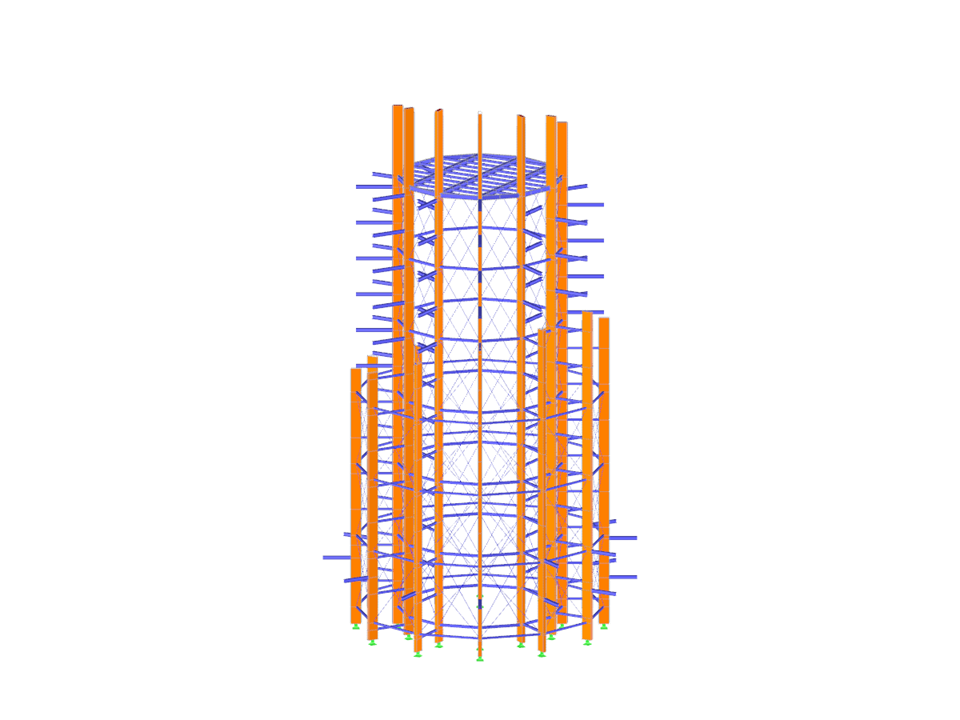

The 40-meter-high, 12-sided lookout tower made of glued-laminated timber in the Panarbora Nature Adventure Park provides visitors with an impressive view of the surrounding area. A 540-meter-long tree-top trail made of timber is attached to the tower. Harrer Ingenieure from Karlsruhe was responsible for the structural analysis and fire resistance design. The 3D model bears the copyright note © Harrer Ingenieure and presents modern timber construction technologies.
Overall
This page has 0 user ratings.
| 5 star | ||
| 4 star | ||
| 3 star | ||
| 2 star | ||
| 1 star |
Panarbora Lookout Tower
No Download Possible
Customer Project / View Only
| Number of Nodes | 808 |
| Number of Lines | 1265 |
| Number of Members | 1261 |
| Number of Load Cases | 9 |
| Number of Load Combinations | 7 |
| Number of Result Combinations | 1 |
| Total Weight | 80,943 t |
| Dimensions (Metric) | 23.320 x 23.320 x 40.948 m |
| Dimensions (Imperial) | 76.51 x 76.51 x 134.34 feet |
| Program Version | 5.05.00 |
