Download the model of a masonry lintel here, and open it with the finite element analysis software RFEM.
This model is used in the free webinar "Modeling with Solids in RFEM".

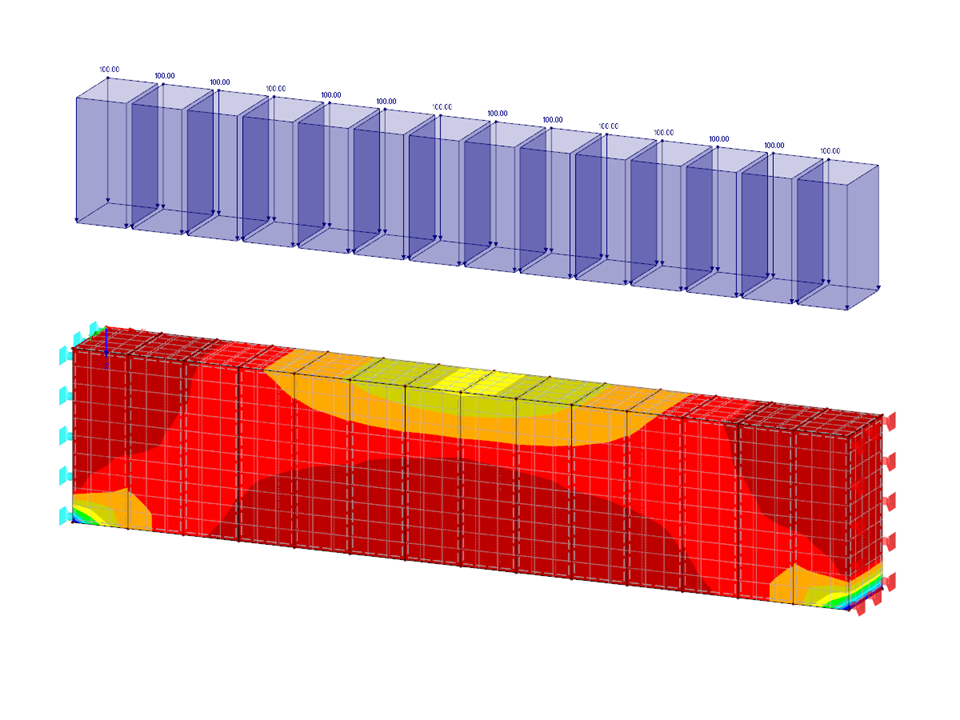

Masonry Lintel with Surface Releases
Number of Nodes | 112 |
Number of Lines | 168 |
Number of Surfaces | 84 |
Number of Solids | 14 |
Number of Load Cases | 1 |
Total Weight | 0.018 tons |
Dimensions (Metric) | 1.120 x 0.115 x 0.240 m |
Dimensions (Imperial) | 3.67 x 0.38 x 0.79 feet |
Program Version | 5.23.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
