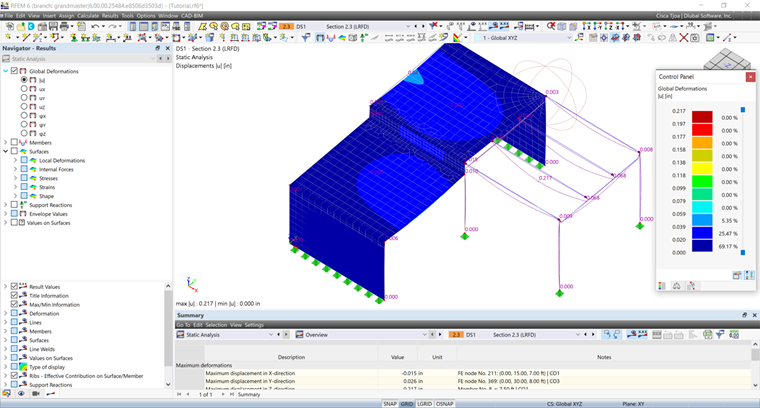

In the workspace, you can see the deformations of the model. The 'Control Panel' shows the color legend. In the navigator, a new tab is activated that manages the different types of results. The 'Summary' table presents the calculation statistics.
Results
![Lateral Buckling of Single-Span Beam](/en/webimage/008676/2225521/01-de.png?mw=512&hash=9f2525444a7414dfb1c05a73e375e9c4fe4f47b1)
![System](/en/webimage/008744/3689325/8744.png?mw=512&hash=b6bfbae69d1045b65ca4f9bbf2f8a15a67b5fae8)
![Timber Panel Wall Stiffnesses](/en/webimage/049956/3893282/49956.png?mw=512&hash=8dfc2b6d0af6ade74073e21655c6a73a34a77751)
![KB 001848 | Timber Column Design as per the 2018 NDS Standard in RFEM 6](/en/webimage/040983/3525158/Timber_Column_for_KB_1848.png?mw=512&hash=8767c3300658d77c253bb7ff632327937a04dd95)
![Torsional stress at the intersection points of a cross -laminated timber plate in RFEM](/en/webimage/006828/497052/RF-LAMINATE.png?mw=512&hash=f7633cd46a79186ac55ba5a5f450c2a96ad24a85)
In the RF-LAMINATE add-on module for RFEM, the design of torsional shear stresses in the superposition of net and gross cross-section values is possible. The design is performed separately in the x- and y-directions. The loads on the intersection points of cross-laminated timber panels are checked.
![Result Output in Table Form](/en/webimage/006858/1585680/000570-en-png.png?mw=512&hash=69a91b2a5760d2fd61c178b712d74f989a1284e2)
At first, the governing joint designs are arranged in groups and displayed with the basic geometry of the joint in the first result window. In the other result windows, you can see all fundamental design details.
Dimensions, material properties, and welds important for the connection construction are displayed immediately and can be printed directly. Similarly, export to DXF-file is enabled. The connections can be visualized in the RF-/JOINTS Timber - Timber to Timber module as well as in RFEM/RSTAB.
All graphics can be included in the RFEM/RSTAB printout report or printed directly. Due to the scaled output, an optimal visual check is possible as early as in the design phase.
![Parameters of National Annex](/en/webimage/006857/1585670/000569-en.png?mw=512&hash=f5342bd9871a5ceae612dc58bf6a93b8e5c3cec5)
The following design results are displayed:
- Check of minimum spacing
- Load-carrying capacity of each screw
![Interactive Result Display](/en/webimage/006967/1588561/000387-en-png-png.png?mw=512&hash=5928e00b8f87495f0581f3be85085fc0c7dc860c)
After the calculation, the maximum stresses, stress ratios, and displacements are displayed by load case, surface, or grid points. The design ratio can be related to any kind of stress type. The current location is highlighted by color in the RFEM model.
In addition to the result evaluation in tables, it is possible to display the stresses and stress ratios graphically in the RFEM work window. For this, you can adjust the colors and values assigned in the panel.
