RF-SOILIN

The RF-SOILIN add-on module allows you to determine the elastic foundations by means of the soil layers. It provides you with an extensible library of soil properties and considers several soil samples at different locations inside and outside the building. Furthermore, it takes into account ground water levels and effects of excavations and a solid bottom soil layer.

The results include the determination and graphical display of stress diagrams and settlements.

Determination of Foundation Parameters Based on Soil Data

Total items: 4

RF-SOILIN | Features

Realistic representation of interaction between a building and soil
Extensible library of soil properties
Consideration of several soil samples (probes) at different locations, even outside the building
Consideration of groundwater level as well as side effects due to excavation and lowest soil layer being solid
Calculation of elastic foundation coefficients
Determination and graphical display of stress diagrams and settlements in grid points

RF-SOILIN | Input

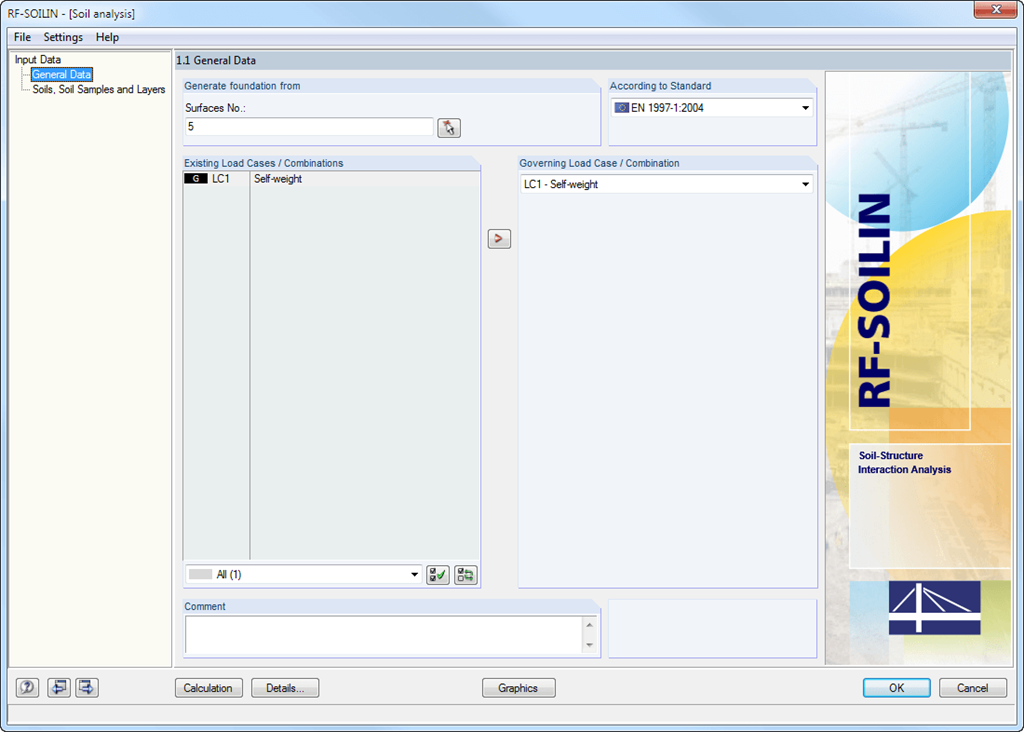

The definition of soil layers is performed in a clearly arranged input window. An extensible library facilitates the selection of soil properties.

The elasticity can be defined either by the stiffness modulus or the modulus of elasticity and the Poisson's ratio. It is possible to define any number of soil layers. You can assign the layers to the building graphically or by entering the relevant coordinates.

Calculation Option for RF-SOILIN in RFEM

RF-SOILIN | Calculation

Elastic foundation coefficients are calculated according to the non-linear iterative method. The module determines elastic foundation coefficients for each individual element. They are dependent on the deformation.

RF-SOILIN | Results

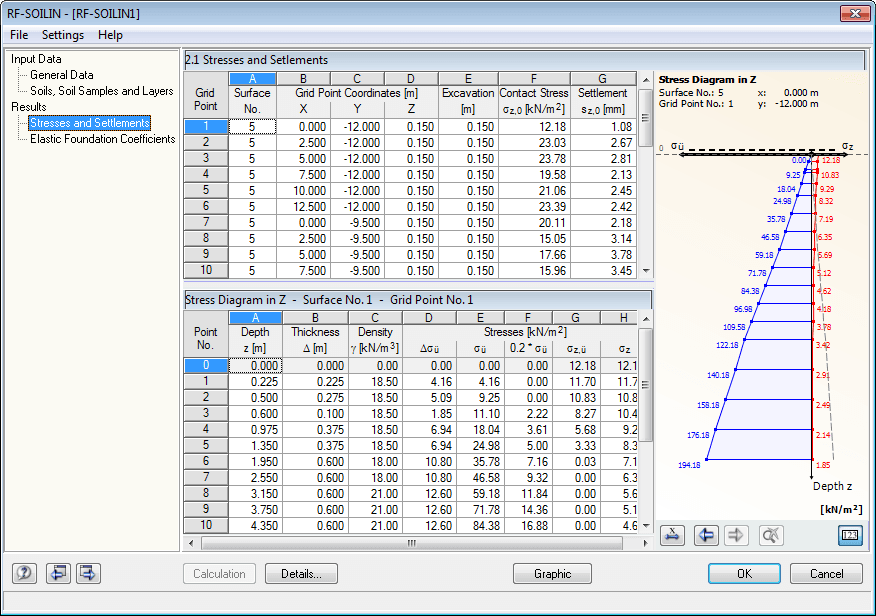

The calculated stresses and settlements are displayed in result windows. In addition, it is possible to evaluate the results graphically. The graphic displays the position and the layer arrangement of the soil samples to clarify the results.

The final result window shows the elastic foundation coefficients. Graphical evaluation is possible as well.
