Add-on Module for RFEM 5
RF-MOVE

The RF-MOVE add-on module generates load cases from different positions of moving loads, such as cranes or vehicles on bridges. It is also possible to create an enveloping result combination when generating loads.

Input data is limited to only two input windows. Together with the quick generation of load cases in RFEM 5, this can save you a lot of time.

Load Case Generation from Moving Loads for Surfaces

Total items: 4

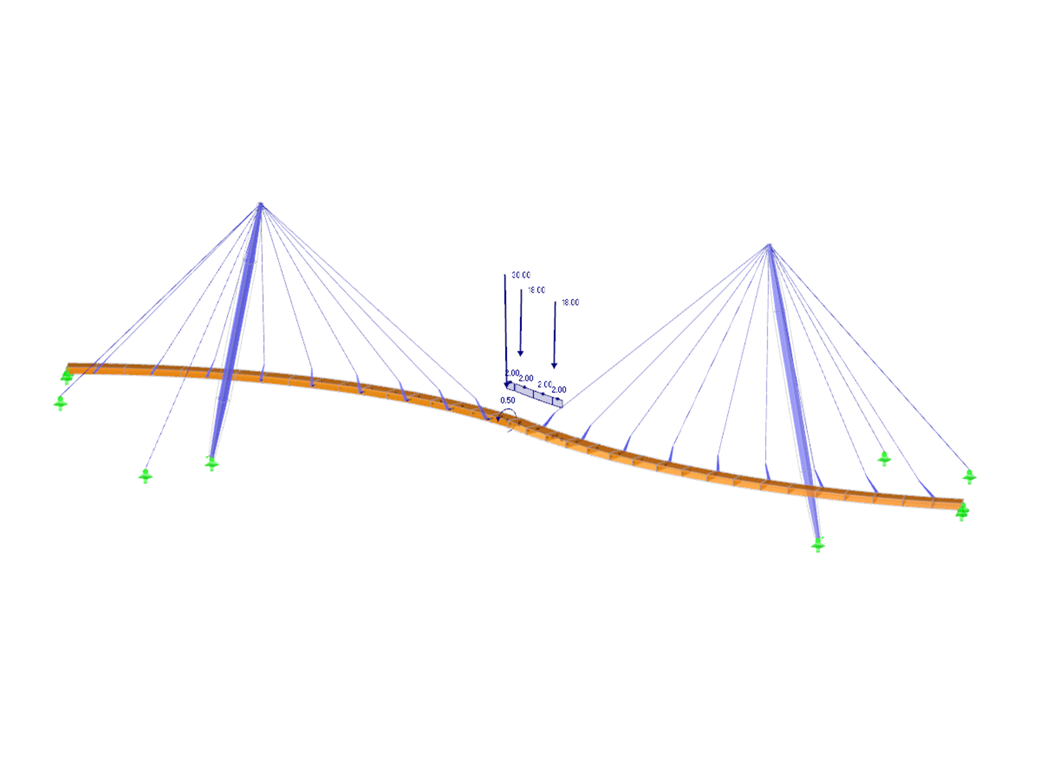

RF-MOVE/RSMOVE Add-on Module for RFEM/RSTAB | Load Case Generation for Members from Moving Load Positions

RF-MOVE/RSMOVE | Features

Generation of up to 9,999 load cases from moving load positions
Parameterized load positions of various concentrated and distributed loads
Summary of several moving loads in one generation case
Possibility to add loads to the already existing RFEM/RSTAB load cases
Generation of a result combination to determine the most unfavorable load position
Possibility to save load specifications for further use in other structures

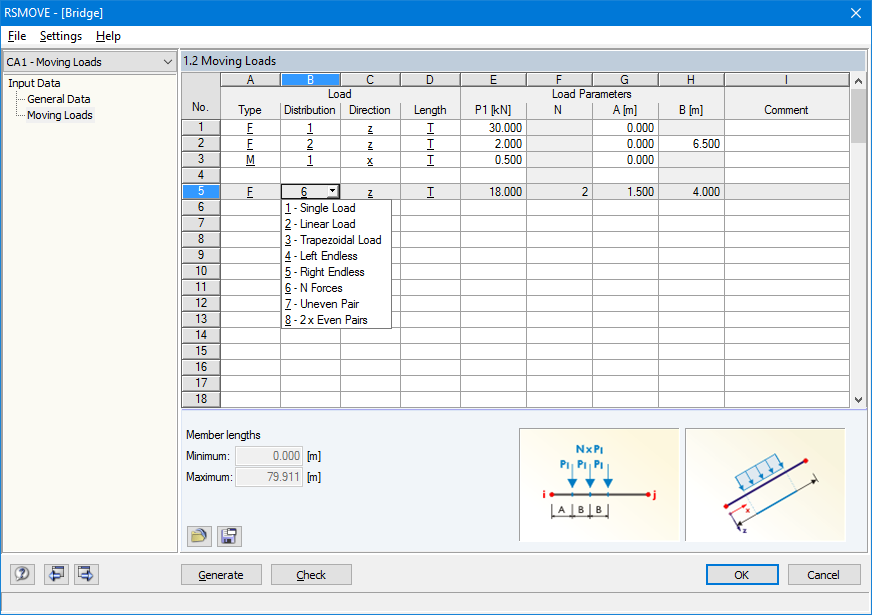

RF-MOVE/RSMOVE | Input

Sets of members with moving loads are selected graphically in the RFEM/RSTAB model. You can apply several different types of loads to one set of members at the same time.

By specifying the first load position, you can precisely display the load entering the runway of the continuous member. In the same way, it is possible to define whether a moving load consisting of various load applications is allowed to move beyond the end of continuous members (bridge) or not (crane runway).

The increment of the individual load positions is determined by the number of load cases generated for RFEM/RSTAB. You can also add loads to already existing RFEM/RSTAB load cases so that no additional superposition is required. Several load types are available, for example single, linear and trapezoidal loads as well as load pairs and several uniform concentrated loads.

It is possible to apply the loads in local and global directions. The application can refer to the true member length or to the projection in a global direction.

RF-MOVE/RSMOVE | Generation

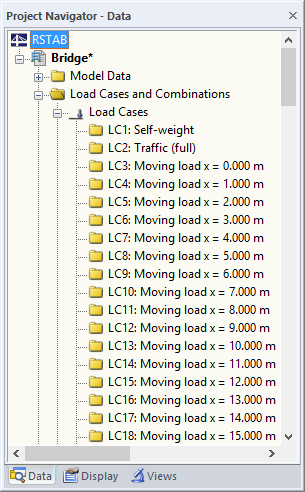

You can create various load cases with a single mouse click. After the generation, the numbers of created load cases and result combinations are displayed.

RF-MOVE/RSMOVE | Results

The RF-MOVE/RSMOVE add-on module does not display any result windows: You can check the created load cases, including loads, in RFEM/RSTAB. Descriptions of the individual moving loads are created on the basis of the respective load increment number.

However, it is possible to modify the descriptions in RFEM/RSTAB. You can export all data in tables to MS Excel.
