The model represents a small steel hall which was designed with global imperfections and the equivalent member method.
Furthermore, each design-governing connection was modeled once, based on the enveloping internal forces.

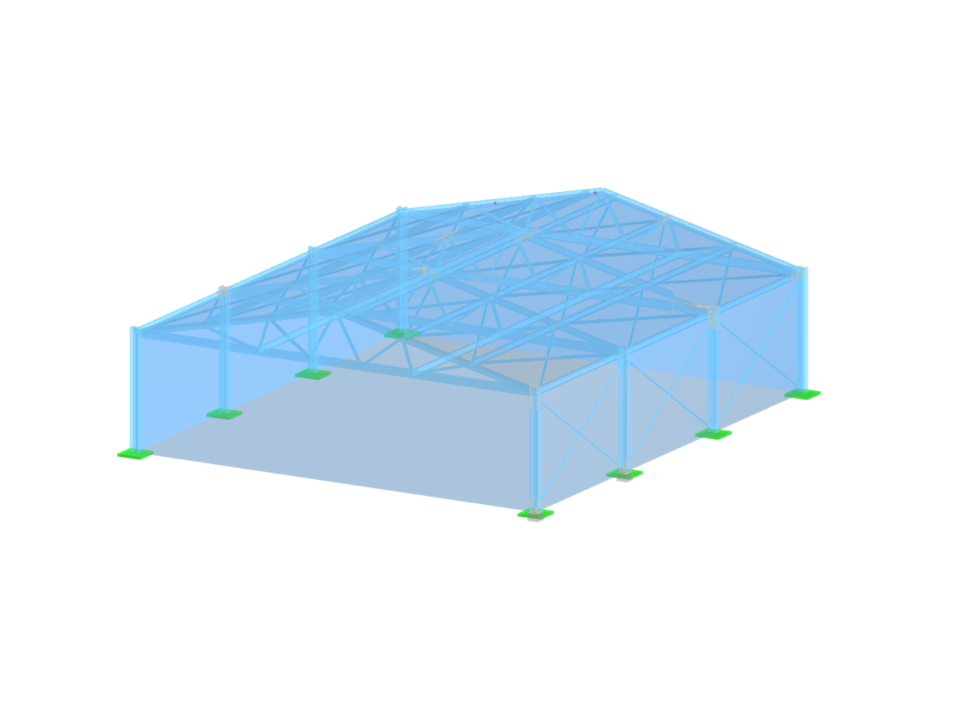

Steel Hall with Governing Connections
| Number of Nodes | 90 |
| Number of Lines | 161 |
| Number of Members | 145 |
| Number of Surfaces | 7 |
| Number of Solids | 0 |
| Number of Load Cases | 14 |
| Number of Load Combinations | 26 |
| Number of Result Combinations | 0 |
| Total Weight | 128.815 tons |
| Dimensions (Metric) | 13.002 x 5.000 x 15.000 m |
| Dimensions (Imperial) | 42.66 x 16.4 x 49.21 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
