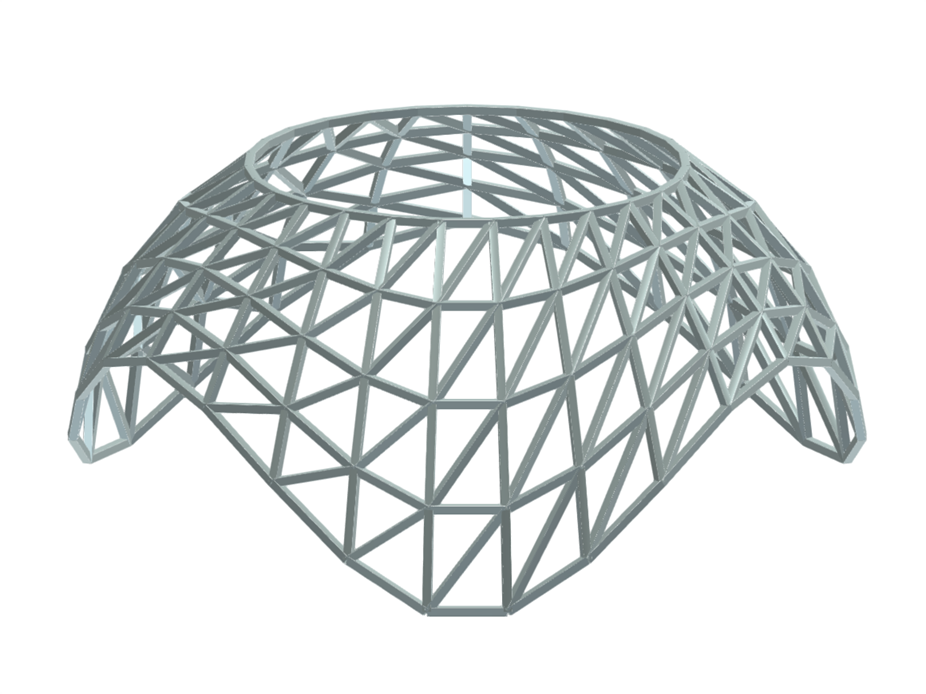

Structural model made of aluminum. The structure consists of a grid-like framework composed of triangular elements, creating a mesh that forms the surface of the dome. The aluminum framework is characterized by its smooth, metallic finish, showcasing the lightweight and strong properties of the material.
Aluminium Round Grid Shell
| Number of Nodes | 135 |
| Number of Lines | 351 |
| Number of Members | 351 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 3 |
| Number of Result Combinations | 0 |
| Total Weight | 4.059 tons |
| Dimensions (Metric) | 13.050 x 5.839 x 13.183 m |
| Dimensions (Imperial) | 42.81 x 19.16 x 43.25 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
