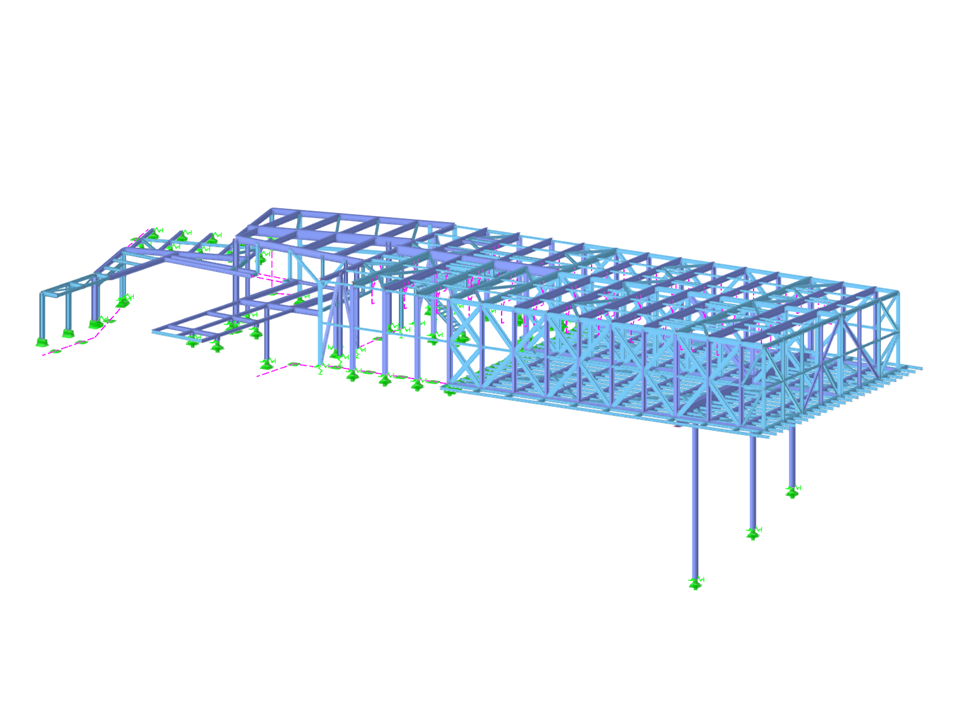

Mountain Station/Garaging Hall Zinsbergbahn, Brixen im Thale, Austria.
Structural Design:
Stahl- u. Fahrzeugbau Grabner GmbHMountain Station/Garaging Hall Zinsbergbahn, Brixen im Thale, Austria
No Download Possible
Customer Project / View Only
Number of Nodes | 1258 |
Number of Lines | 2115 |
Number of Members | 1982 |
Number of Surfaces | 0 |
Number of Solids | 0 |
Number of Load Cases | 47 |
Number of Load Combinations | 3 |
Number of Result Combinations | 24 |
Total Weight | 230.124 tons |
Dimensions (Metric) | 67.475 x 20.970 x 35.259 m |
Dimensions (Imperial) | 221.37 x 68.8 x 115.68 feet |
