Download the model of concrete surfaces with a surface contact here, and open it with the FEA software RFEM.
This model is used in the free webinar "The Most Frequently Asked Questions Addressed by Dlubal's Support Team" on July 7, 2022 (in English; July 5, 2022 in German).

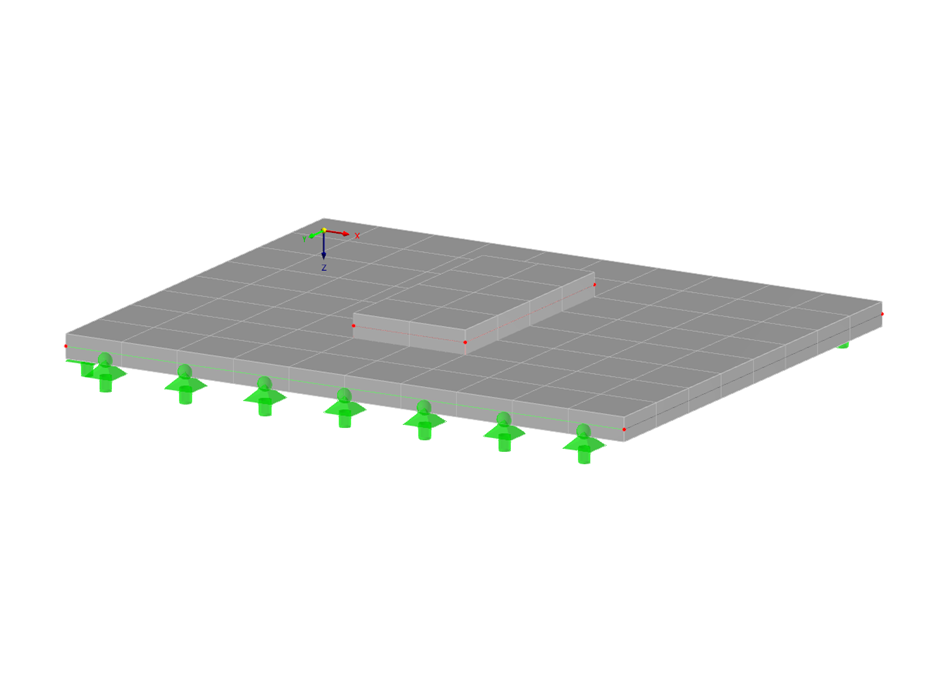

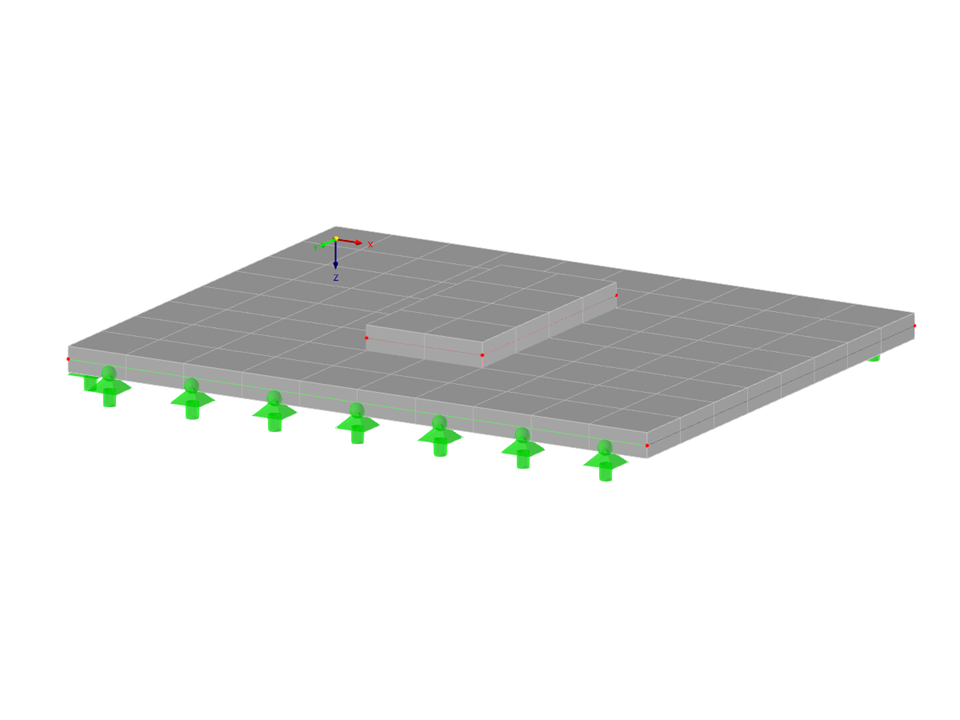

Concrete Surfaces with Surface Contact
| Number of Nodes | 8 |
| Number of Lines | 8 |
| Number of Members | 0 |
| Number of Surfaces | 2 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 11.000 tons |
| Dimensions (Metric) | 5.000 x 0.200 x 4.000 m |
| Dimensions (Imperial) | 16.4 x 0.66 x 13.12 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
