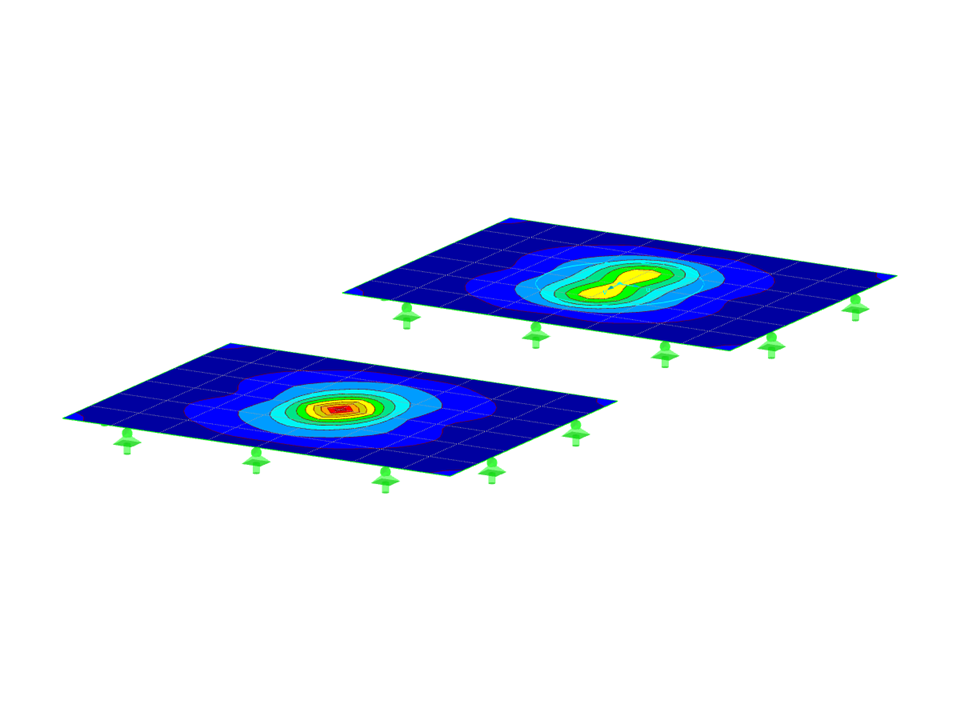

The model shows a plate that integrates a defined average region. The feature for defining average regions is presented in the “Results” menu under “New Average Region” in RFEM 5. The average region is used for the efficient treatment of singularities and to optimize numerical calculations. The accompanying image visually illustrates the application example.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Plate with Average Region Demonstration

Number of Nodes 10
Number of Lines 8
Number of Surfaces 2
Number of Load Cases 1
Total Weight 9,420 t
Dimensions (Metric) 4.000 x 8.000 x 0.000 m
Dimensions (Imperial) 13.12 x 26.25 x 0 feet
Program Version 5.25.01

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
