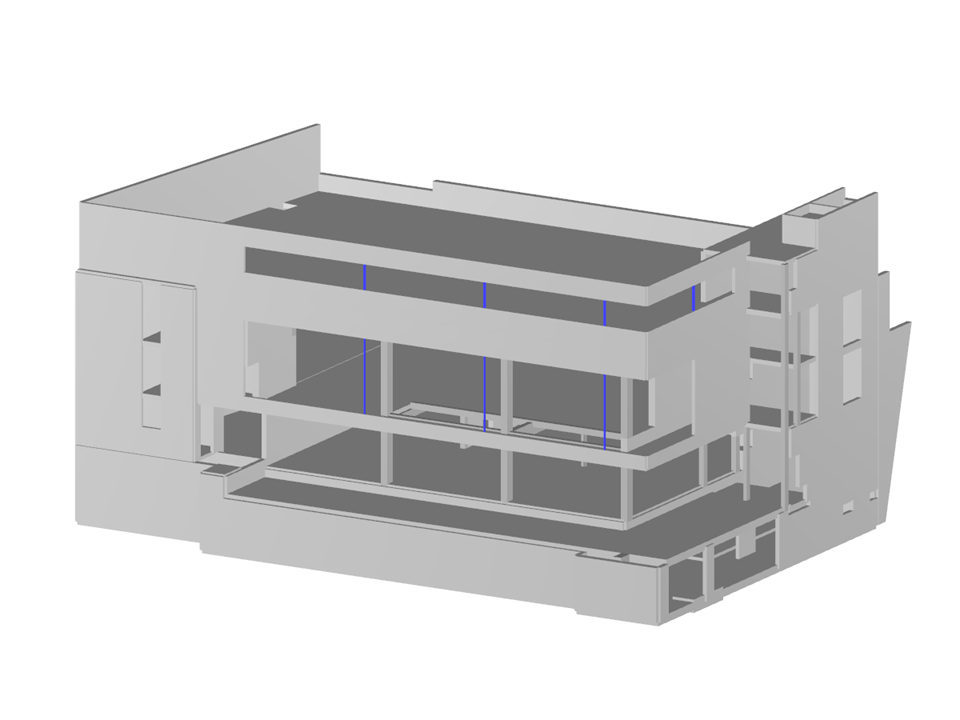

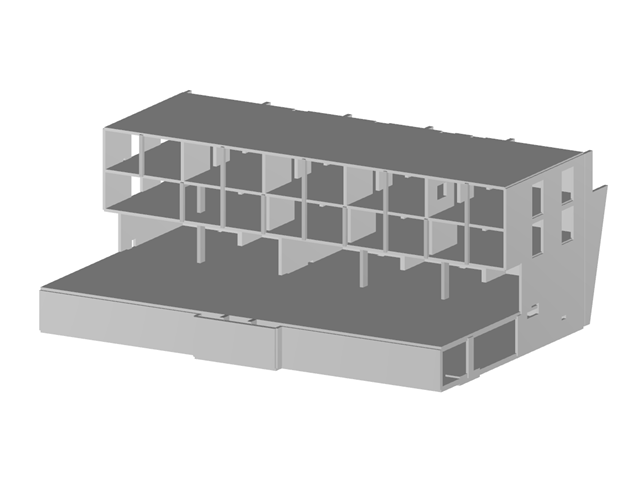

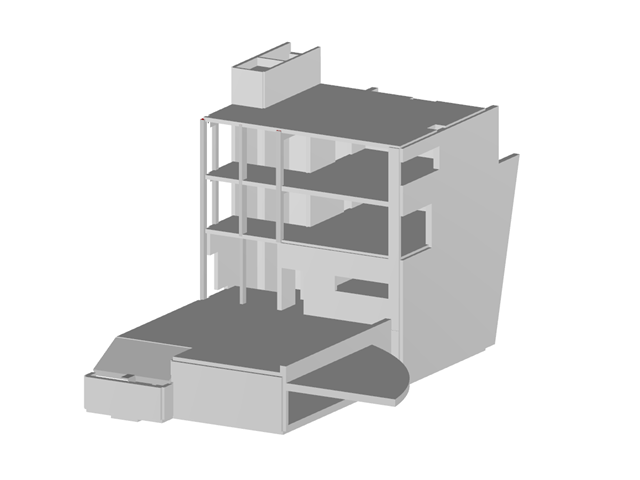

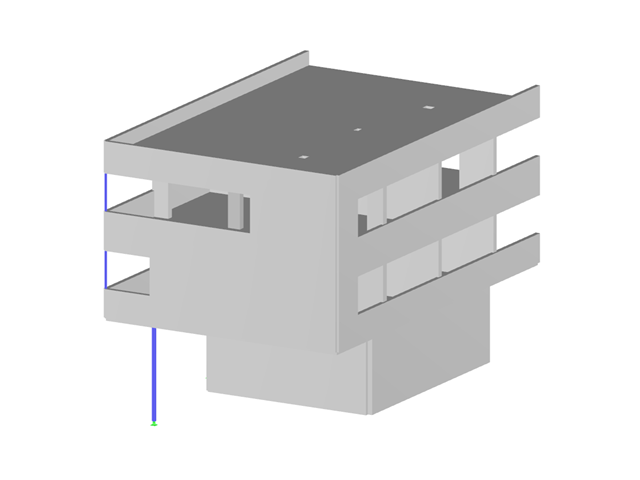

The model shows a multi-story reinforced concrete building that impresses with its precise dimensions and sophisticated reinforcement layout. The structural concept was realized under the technical direction of Dipl.-Ing. Rainer Zangerle, a consulting engineer in structural engineering based in Kappl, Austria. The display provides insights into the arrangement of supporting elements and the dimensionally accurate integration of structural elements. The visualization conveys the structural complexity and the details of the structural planning.
5 star | ||
4 star | ||
3 star | ||
2 star | ||
1 star |
Multi-Story Reinforced Concrete Building
Number of Nodes | 801 |
Number of Lines | 1113 |
Number of Members | 106 |
Number of Surfaces | 178 |
Number of Load Cases | 7 |
Number of Load Combinations | 11 |
Number of Result Combinations | 3 |
Dimensions (Metric) | 37.851 x 27.187 x 18.625 m |
Dimensions (Imperial) | 124.18 x 89.2 x 61.11 feet |
Program Version | 5.25.01 |
