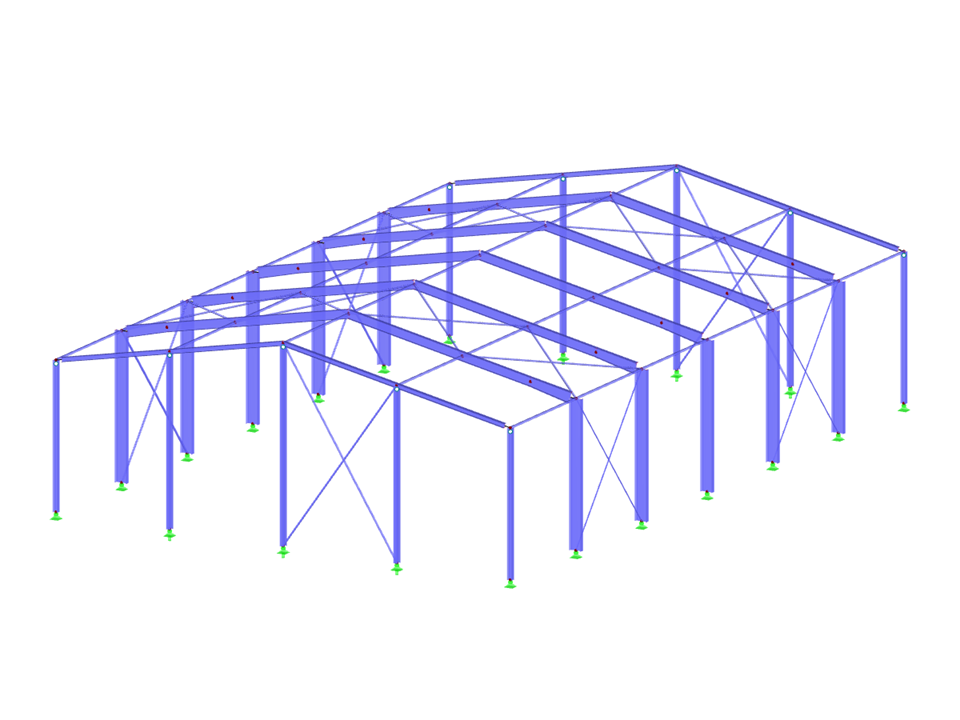

Download the model of a steel hall here, and open it with the FEA software RFEM.
This model is used in the free webinar "The Most Common User Errors with RFEM and RSTAB" presented in the German version on January 28, 2021 (February 4, 2021 in English).
Model Used in
Steel Hall with Automatically Generated Wind Loads
Number of Nodes | 65 |
Number of Lines | 116 |
Number of Members | 116 |
Number of Load Cases | 1 |
Total Weight | 18.558 tons |
Dimensions (Metric) | 20.117 x 30.117 x 8.058 m |
Dimensions (Imperial) | 66 x 98.81 x 26.44 feet |
Program Version | 5.24.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
