The simplest way to model a bolt connection in RFEM 5 is to define a node in the center of a hole, then connect it by means of internal members to the surface.
Model Used in

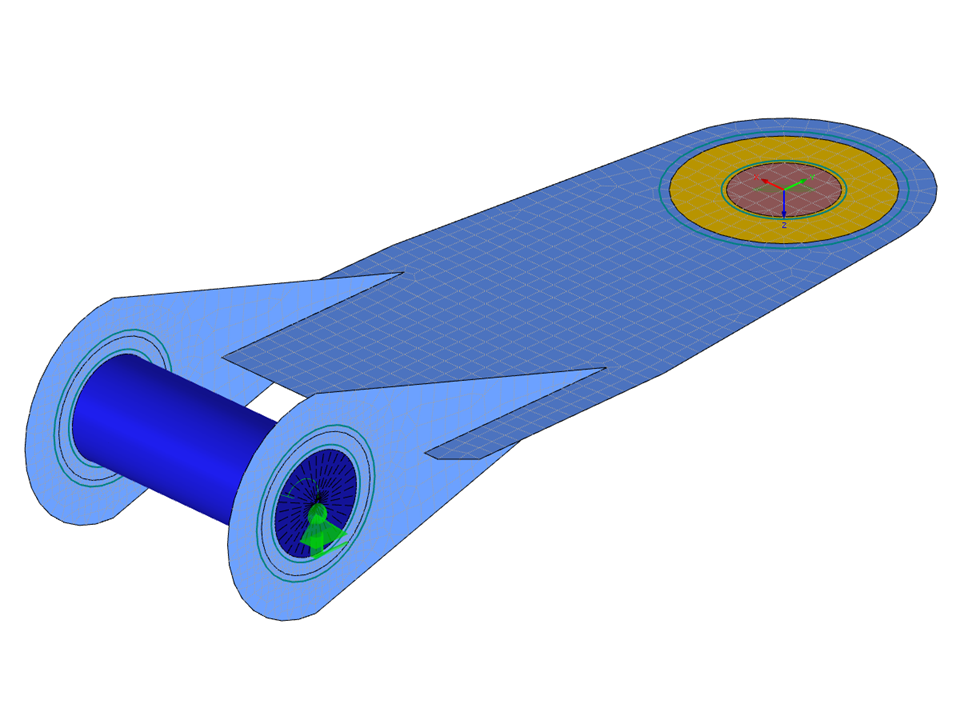

Bolt Connection
| Number of Nodes | 113 |
| Number of Lines | 115 |
| Number of Members | 75 |
| Number of Surfaces | 7 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.016 tons |
| Dimensions (Metric) | 0.201 x 0.130 x 0.565 m |
| Dimensions (Imperial) | 0.66 x 0.43 x 1.85 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
