Defining Construction Stage 3

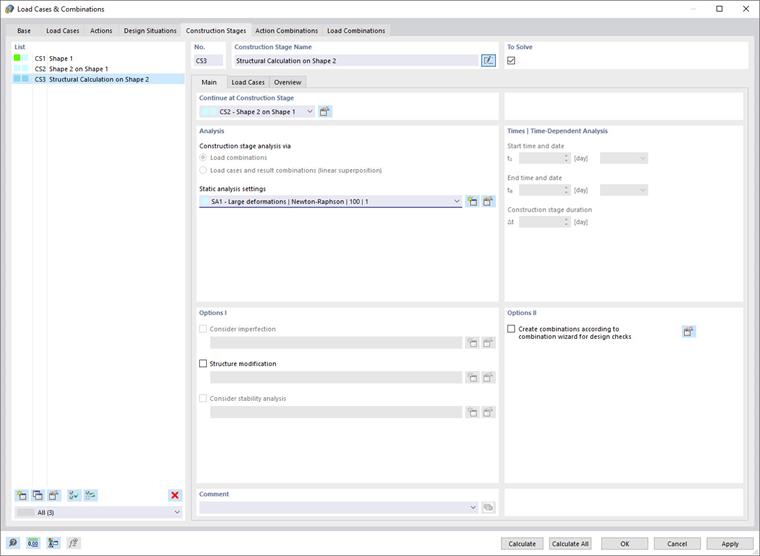

As already mentioned, it is necessary to provide the basis on which the calculation is to be carried out. For this, define a new construction stage named "Structural Calculation on Shape 2."

Tip

As you can see, Construction Stage 3 follows on from the construction stage "Shape 2 on Shape 1."

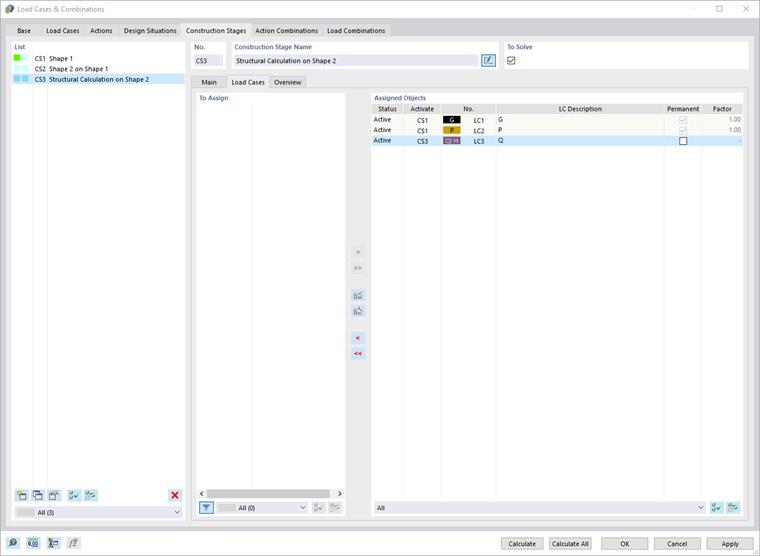

In the same way as before, the load cases assigned as "permanent" in the previous construction stages are automatically taken into account. However, the newly defined Load Case Q must also be taken into account, but as non-permanent, in this specific construction stage.
