Odpověď:
Je možné, že modul pro posouzení MSP stanoví vysokou nutnou výztuž, pokud navrženou výztuž nelze umístit do průřezu nebo spíše do vrstvy výztuže. It is also possible that the deflection analysis leads to a high required reinforcement.

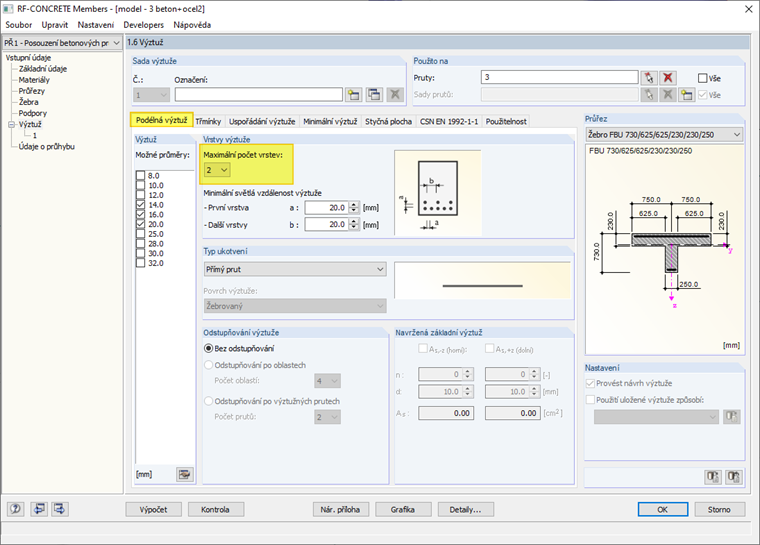

One solution might be to increase the maximum number of reinforcement layers. With a higher number of reinforcement layers, it is possible to provide a higher reinforcement (Image 01).

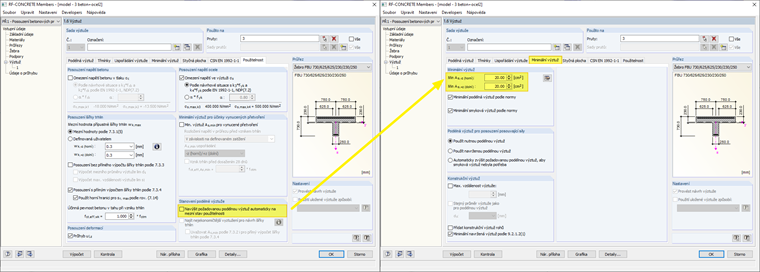

For deflection analyses, it another solution might be to disable the automatic increase of the longitudinal reinforcement for the serviceability limit state design and to define a minimum reinforcement (Image 02). In combination with other SLS checks, it could be useful to calculate the deflection analysis in a separate case.
