Answer:

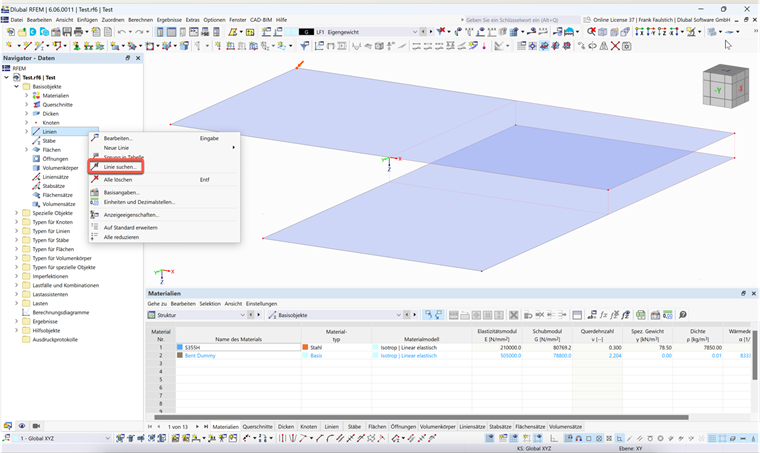

Right-click the "Lines" entry in the Data navigator and select "Find Line" from the menu.

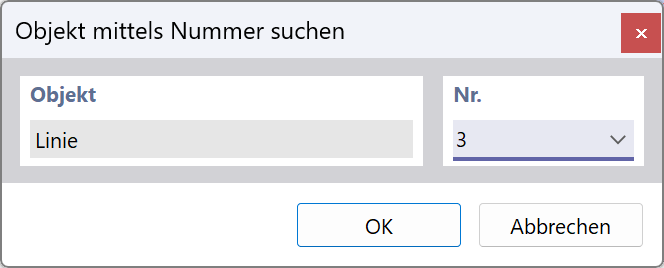

Enter the line number and click OK.

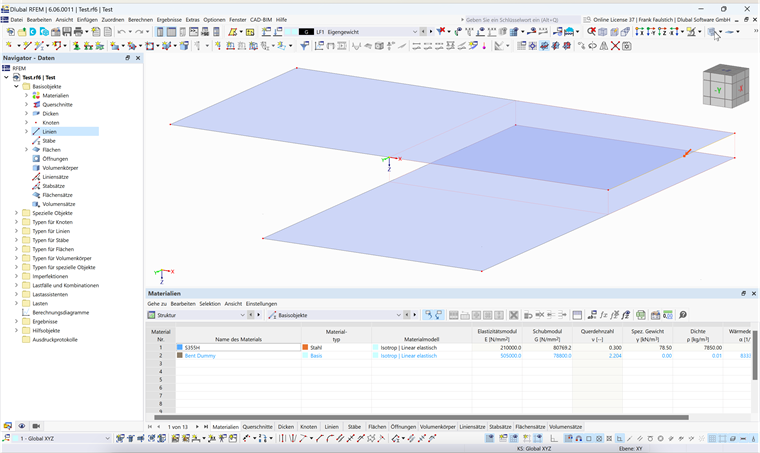

The line is indicated by a red arrow in the graphic.
