Answer:

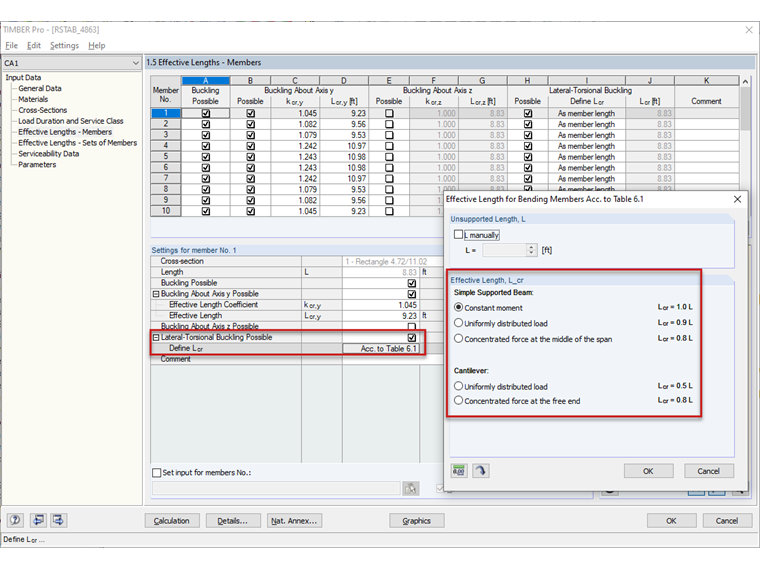

The effective length can be adjusted in Window 1.5 of the add-on module, depending on the type of bending moment in the "Define Lcr" line.
Question
Where can I adjust the effective length lef according to Table 6.1 of Eurocode 5 in the TIMBER Pro add-on module?
