[EN] FAQ 003443 | A single-span beam consisting of several apparently straight members receives small ...

Question:

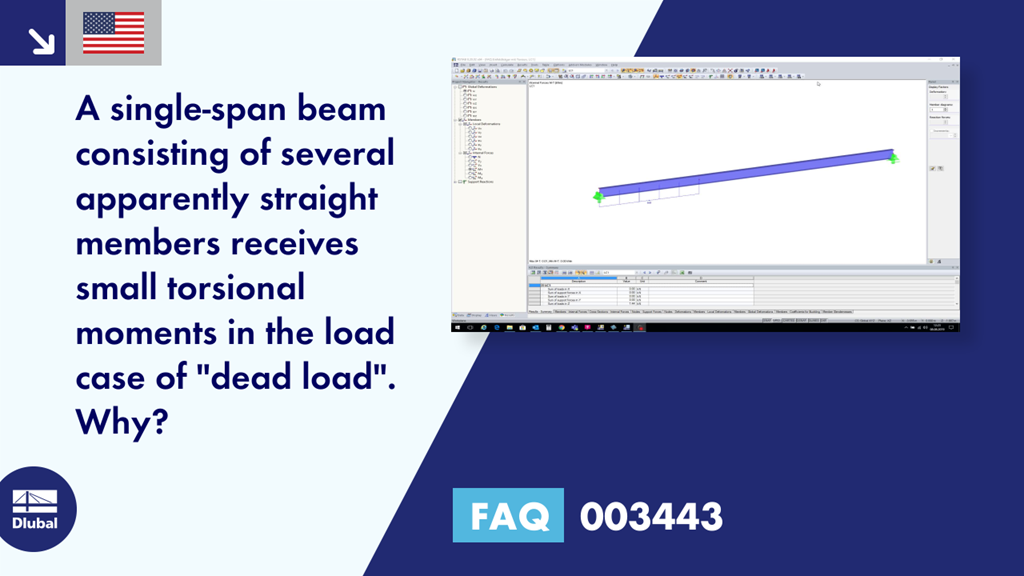

A single-span beam consisting of several apparently straight members receives small torsional moments in the load case of "dead load". Why?

Answer:
There is very likely an inaccuracy in the modeling, which has to be checked as follows:

Set the view in the member direction, then zoom in.

Select all existing nodes that should lie on the same line: If the respective coordinates in the transverse direction do not correspond to the member axis, the corresponding field of the coordinate is empty and there is a deviation.



;
