Add-on Module for RFEM 5
RF‑MOVE Surfaces

The RF-MOVE Surfaces add-on module for RFEM 5 generates load cases from different positions of moving loads, such as vehicles on bridges. You can also use it to generate an enveloping result combination.

Input data is limited to four input windows. Together with the quick generation of load cases in RFEM 5, this can save you a lot of time.

Generation of Moving Loads on Surfaces

Total items: 3

RF‑MOVE Surfaces | Features

Parameterized load positions of different concentrated, distributed, surface, and axle loads
Access to a library with different axle load models
Favorable or unfavorable load application considering influence lines and surfaces
Summary of several moving loads in one load scheme
Generation of a result combination for determination of the most unfavorable internal forces
Possible to save load schemes for further use in other structures

RF‑MOVE Surfaces | Input

Surfaces with moving loads are selected graphically in the RFEM model. You can apply loads with several different sets of movement on one surface at the same time.

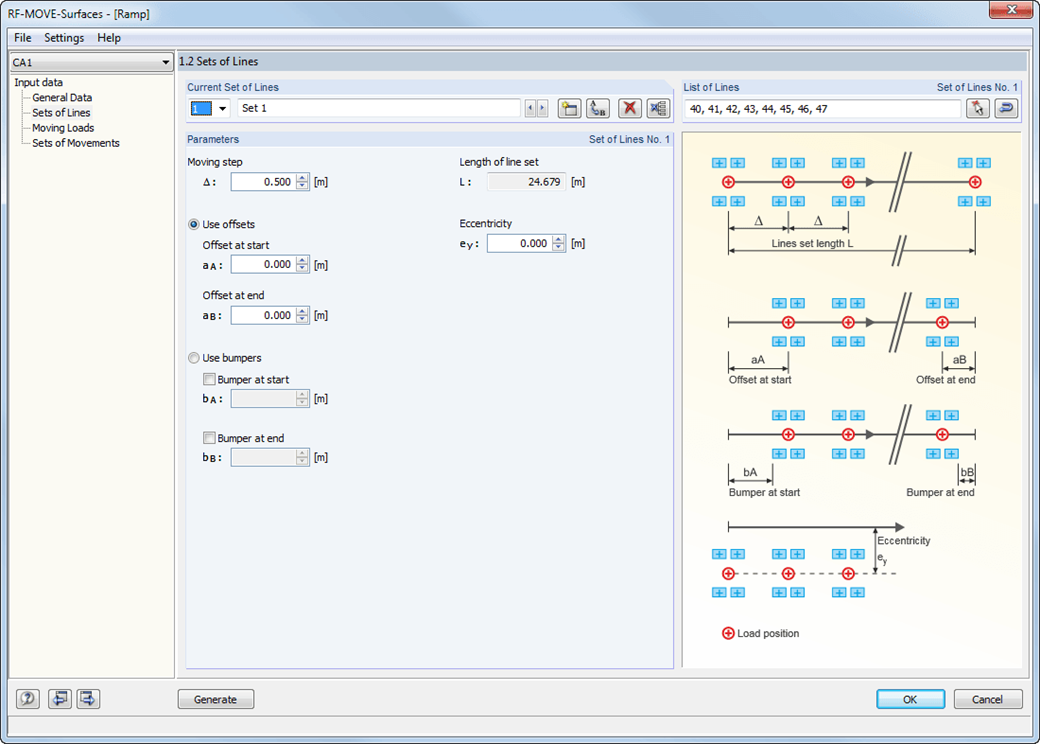

The 'lane' is defined by means of line sets. You can select them graphically in the model. In addition, you can enter the increment of the individual load steps. Several load types are available; for example, single, linear, rectangular, circular, and various axle loads. They can be applied in local and in global directions.

The different loads are summarized in load models. The module assigns defined load models to the sets of lines and creates individual load cases based on these data.

RF‑MOVE Surfaces | Generation / Results

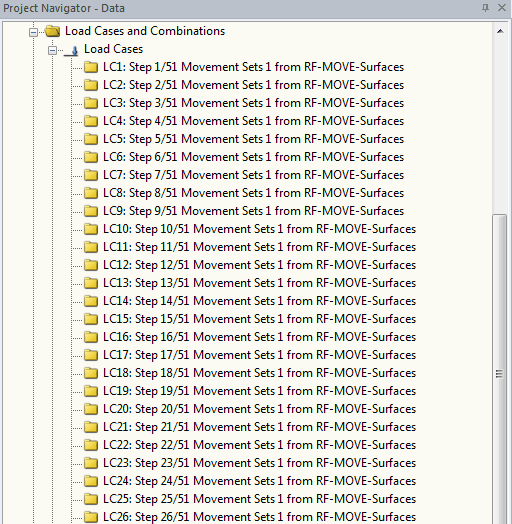

You can create various load cases with a single mouse click. After the generation, the numbers of created load cases and result combinations are displayed.

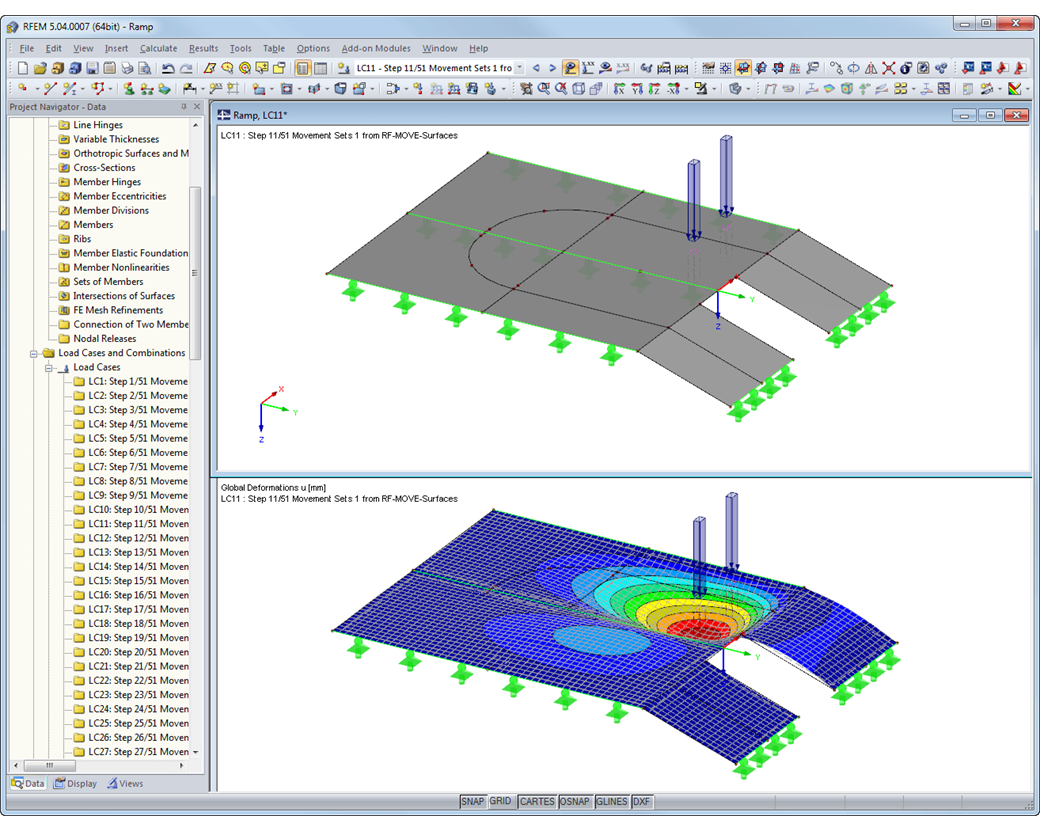

The RF-MOVE Surfaces add-on module does not have any result windows. You can check the created load cases including loads in RFEM.

Descriptions of the individual moving loads are created on the basis of the respective load step number. However, it is possible to edit the descriptions in RFEM.

You can export all data in tables to MS Excel.
