Customizable Graphical User Interface for Individual Adjustment
Total items: 7
Intuitive Graphical User Interface
The Dlubal programs are user-friendly. This way, you will have a short induction period and easy handling of the software.

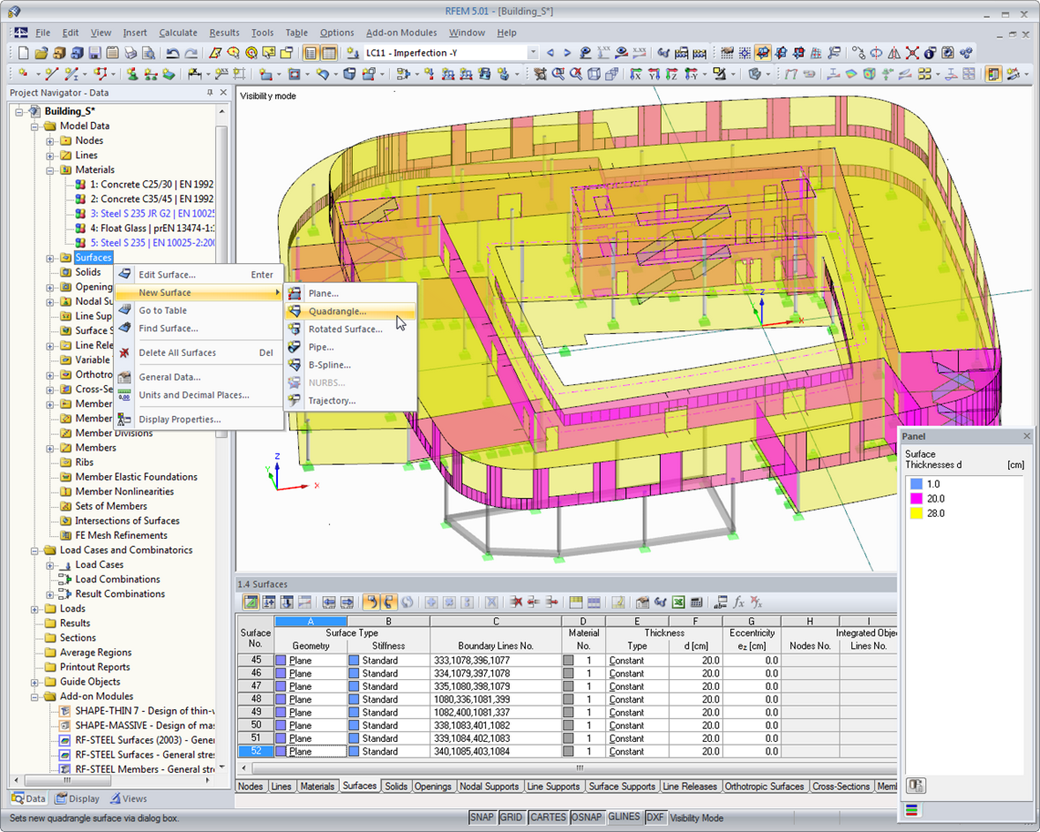

Your structure is created in a user interface usual for CAD or via tables. By right-clicking the graphical or navigator objects, you can activate a shortcut menu that allows you to easily create or modify the objects. Try it out for yourself and let yourself be inspired by the intuitive user interface! Therefore, you can create the structural and loading objects in a minimum amount of time.
Multilingual Program Operation
Dlubal Software customers come from all over the world and there are, of course, numerous language options for the structural analysis software. It is possible to operate the program in the following languages: English, Chinese, Czech, Dutch, French, German, Italian, Polish, Portuguese, Russian, and Spanish.

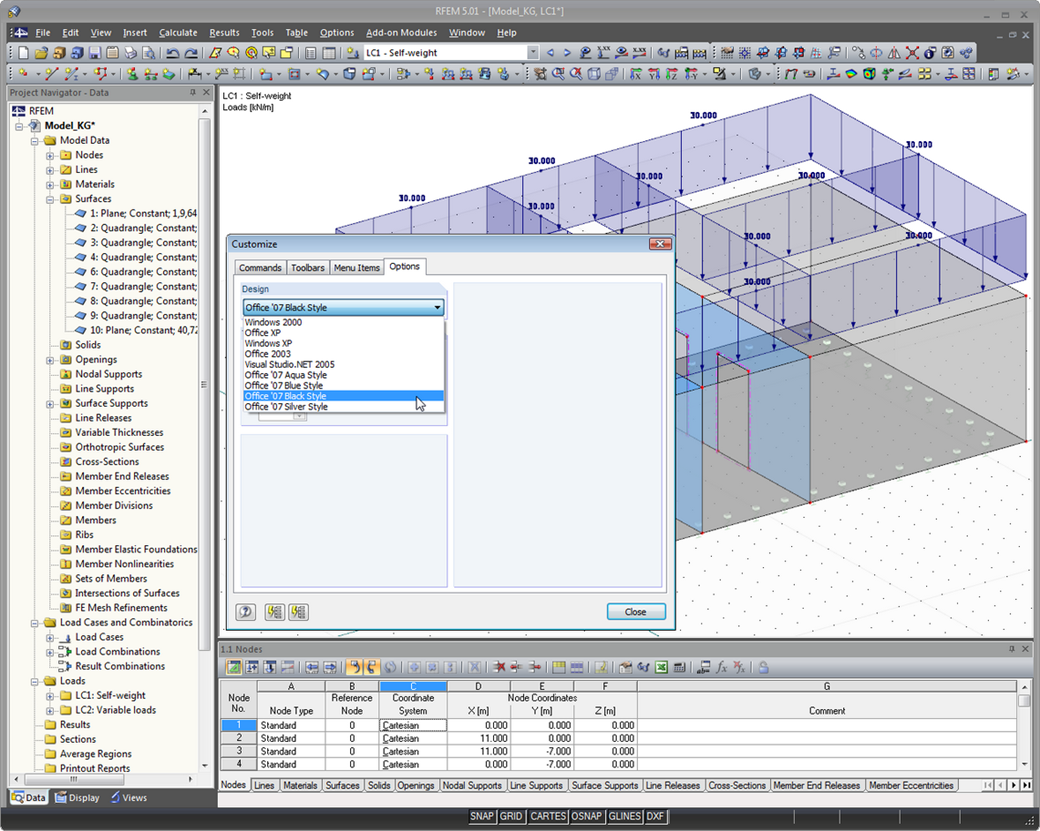

You can also modify the design of the RFEM/RSTAB user interface: There are nine different styles of graphical user interface to choose from; for example: Office 2007 Blue, Silver, Aqua, and Black. Customize the programs to your individual needs.
User-Defined Configurations
If you are interested in making your daily work easier and more efficient, you should also pay attention to this feature. Program configuration menus and toolbars can be freely customized. This allows you to arrange your frequently used functions in a user-defined way and save time. Everything from the beginning? No problem: You can restore the default settings of the program with a mouse click. Tables, navigators, and toolbars can also be moved and docked as required.

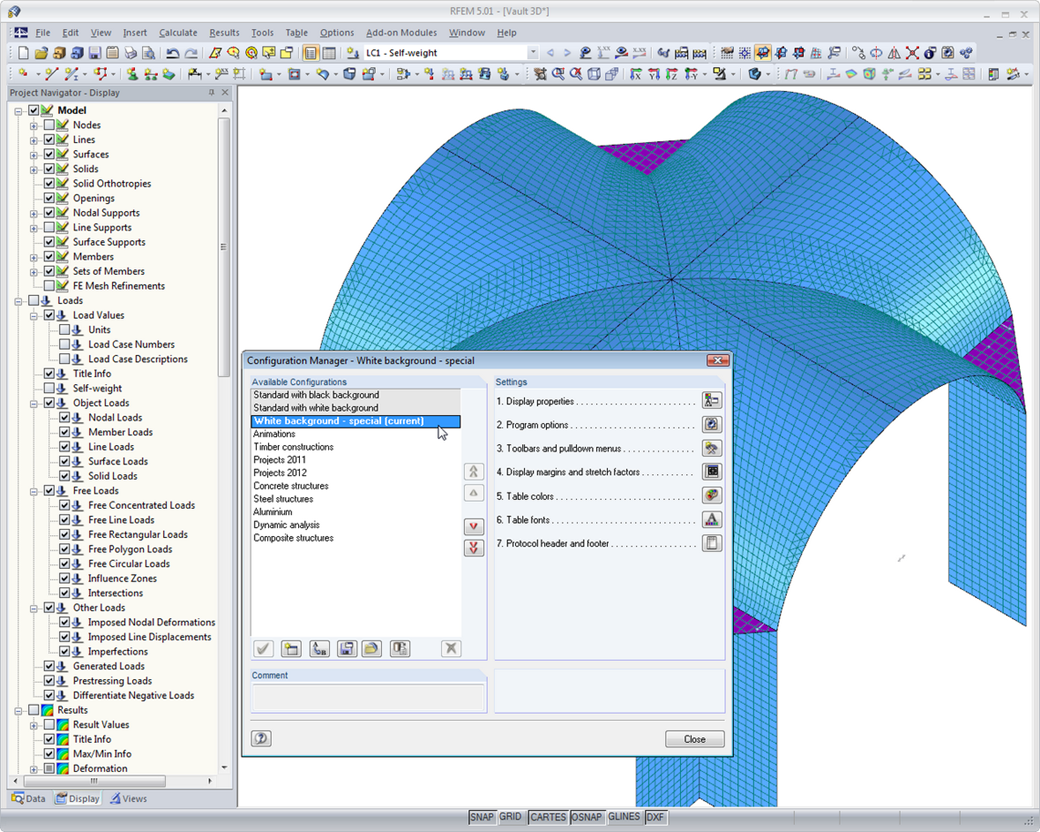

Furthermore, you can use the configuration manager to set the graphic display properties, toolbars, and so on in a user-defined way and save them as your own configuration. Thus, the software becomes your individual productivity enhancer.
Photorealistic Visualization
Keeping track of your model has never been so easy. Due to the photorealistic visualization in 3D rendering, you always have immediate control of the input. Adjust the display colors freely and separately for screen and printout. This way, you can directly see the important aspects.

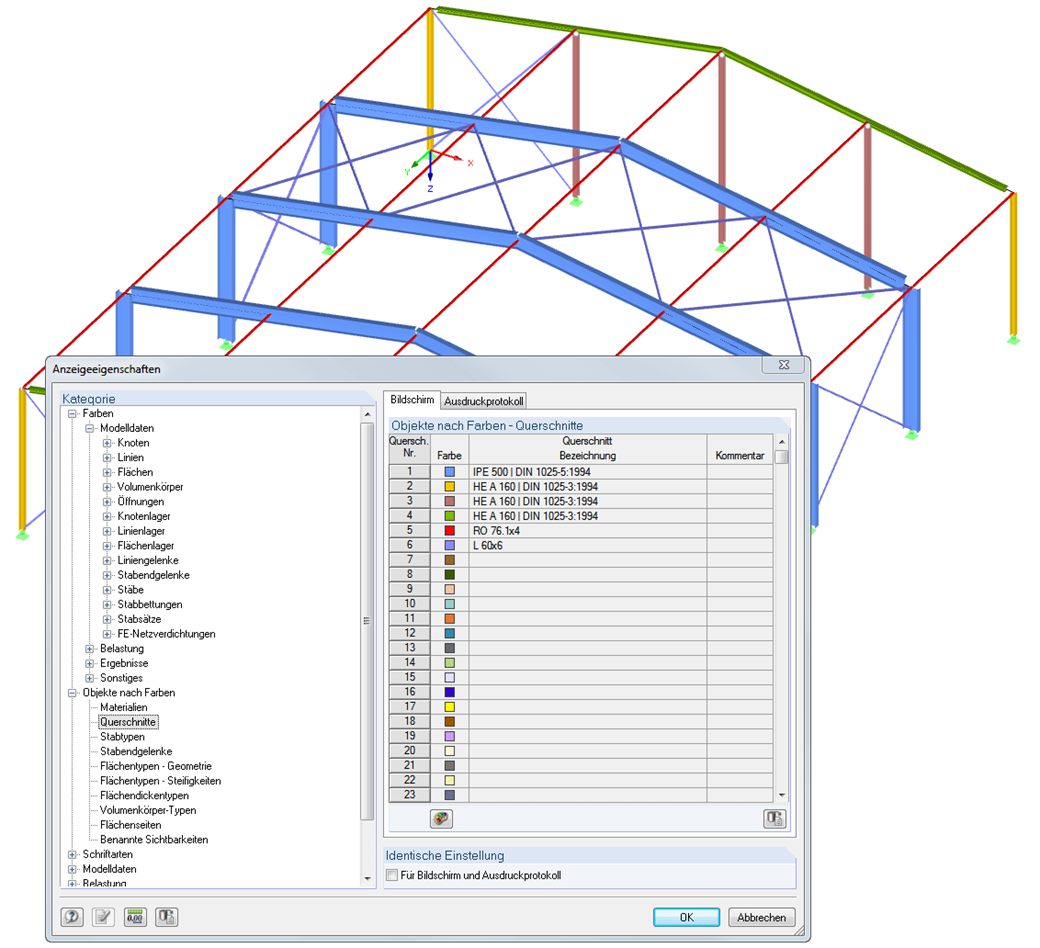

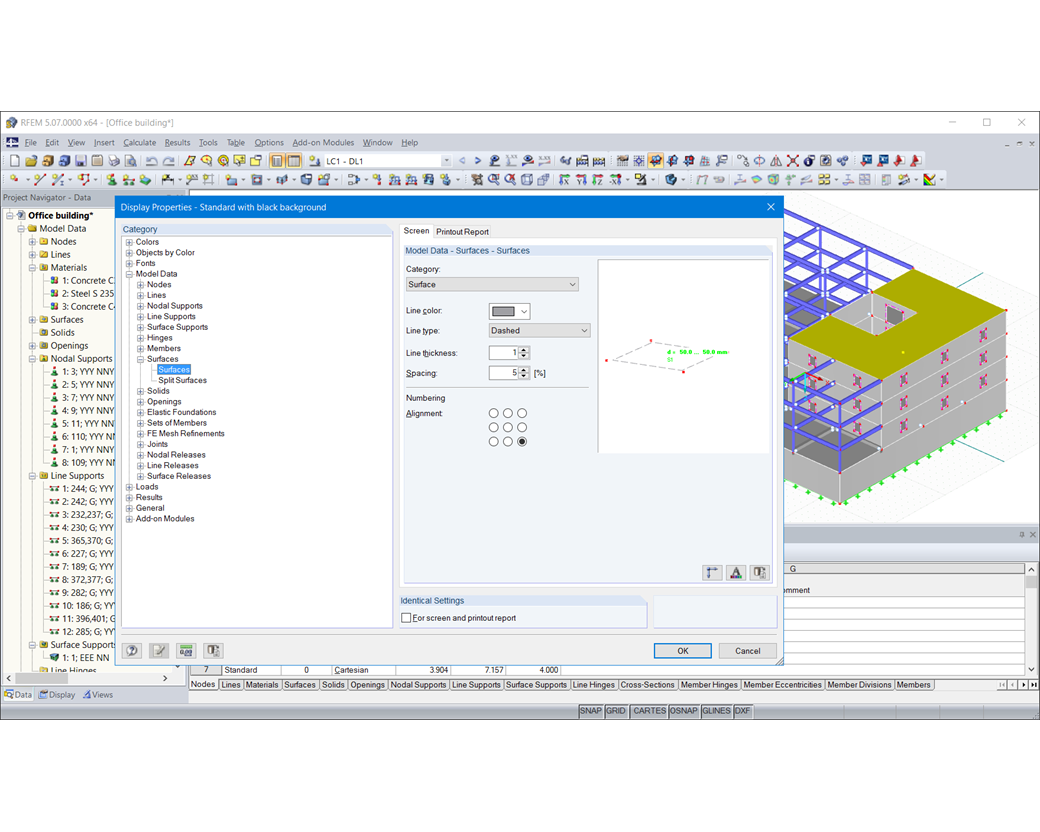

Display Properties
Always keep track of things by assigning different colors to the various objects in your structure. Thus, the rendering display of the structure is even clearer; and you can see the essentials at a glance.
You can distinguish between Materials, Cross-Sections, Member Types, Member Hinges, Surface Types - Geometry, Surface Types - Stiffness, Surface Thicknesses, Solid Types, Surface Sides, Named Visibilities, and Effective Length Factors.

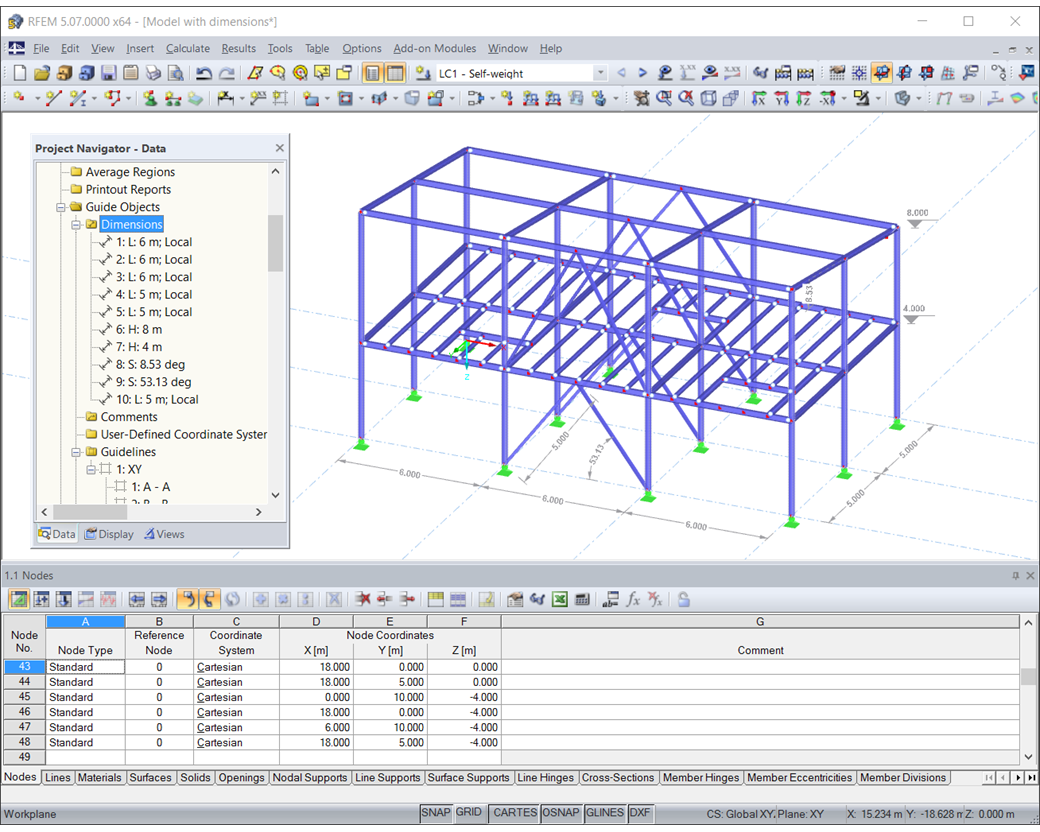

Displaying and Hiding Objects
Customize your model to work even more efficiently. You can selectively display or hide various objects, such as nodes, members, supports, and others. The model can be dimensioned by using lines, arcs, inclinations, or height nodes. Freely createable guidelines, sections, and comments facilitate you the input and evaluation. You can also display or hide the guide objects individually.

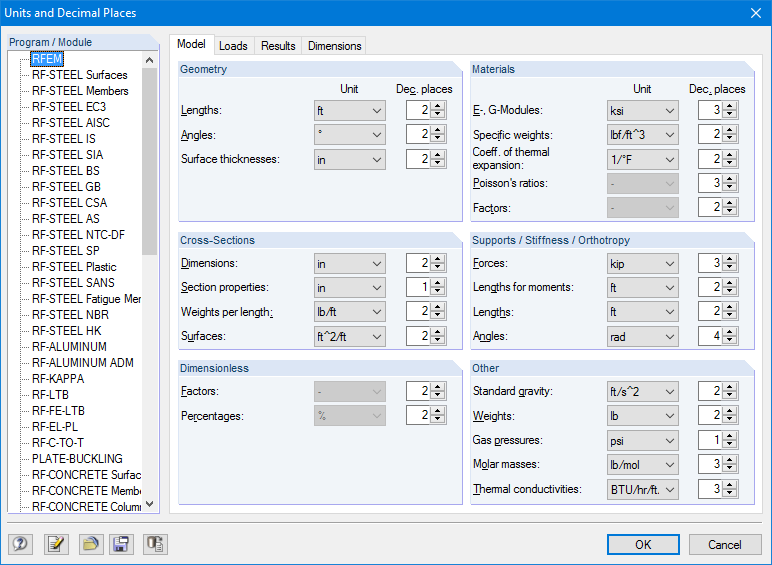

Global Unit Settings
A global dialog box manages the units of input data, loads, and results in RFEM/RSTAB as well as in all add‑on modules.
Take advantage of the helpful functions offered below: You can save your settings and import them again later. In this way, you can This requires, for example, to use different sections for steel and reinforced concrete structures.
