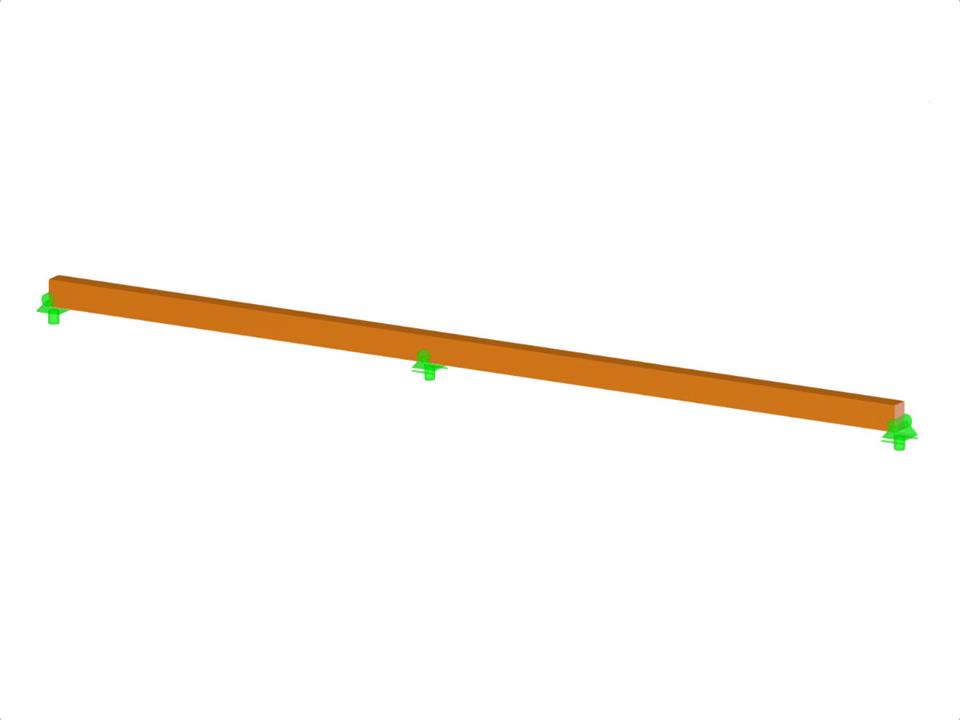

Download the parametric model of a timber joist on three supports here and open it with the structural FEA software RFEM 6.
This model was used in the presentation "Creating Parametric Model in RFEM 6" on June 20, 2024.Timber Joist – Parametric
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 11 |
| Number of Result Combinations | 4 |
| Total Weight | 0.177 tons |
| Dimensions (Metric) | 9,000 x 0,000 x 0,000 m |
| Dimensions (Imperial) | 29.53 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
