In RFEM and RSTAB, snow drift is considered according to 5.3.4(3) of DIN EN 1991‑1‑3 for saw-tooth roofs.
To determine the correct load, it is necessary to specify the position of the drifted snow according to the nodes of the roof surface. This way, you can quickly create two load cases: "Snow with Drifted Snow" and "Snow Without Drifted Snow".

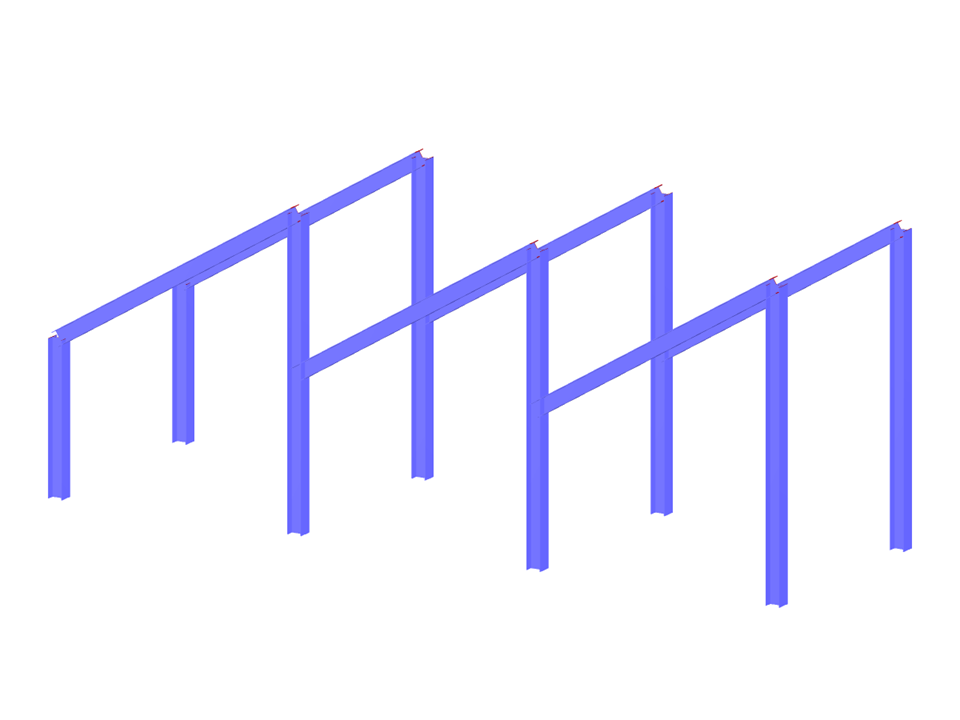

Saw-Tooth Roof
Number of Nodes | 20 |
Number of Lines | 18 |
Number of Members | 18 |
Number of Load Cases | 2 |
Total Weight | 6.799 tons |
Dimensions (Metric) | 15.000 x 4.500 x 6.000 m |
Dimensions (Imperial) | 49.21 x 14.76 x 19.69 feet |
Program Version | 5.23.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
