This model was used to show the utilization of the model check to search specifically for discrepancies that may arise due to modeling.
Model Used in

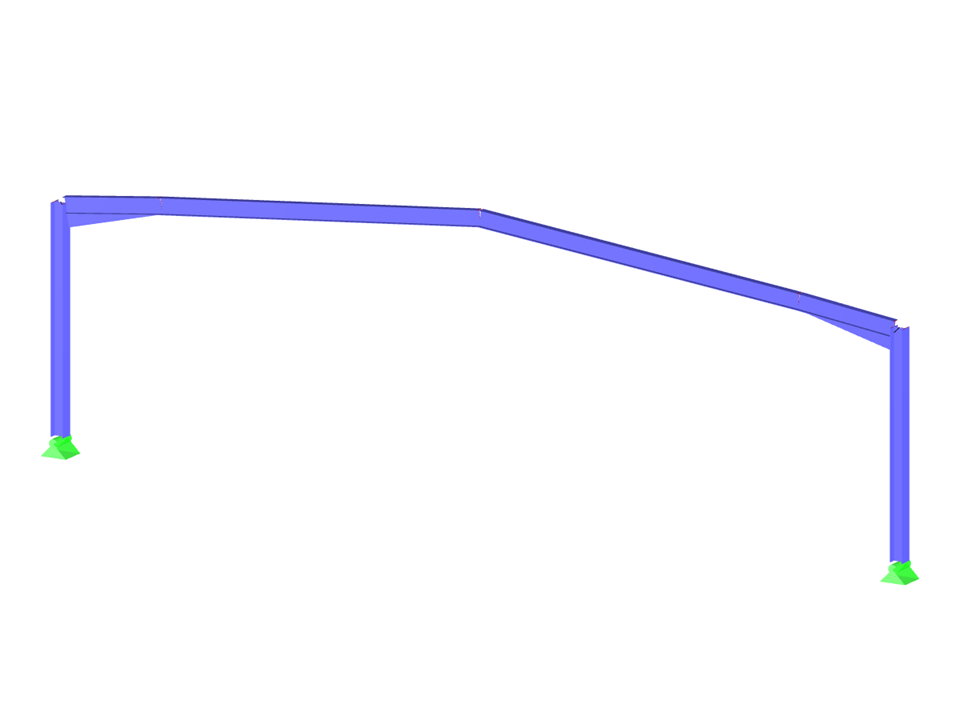

Steel Frame Structure
| Number of Nodes | 10 |
| Number of Lines | 6 |
| Number of Members | 6 |
| Number of Load Cases | 1 |
| Total Weight | 2.073 tons |
| Dimensions (Metric) | 20.600 x 0.600 x 6.300 m |
| Dimensions (Imperial) | 67.59 x 1.97 x 20.67 feet |
| Program Version | 5.23.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
