Many of the stone monuments in the Angkor archaeological site, a UNESCO World Heritage Site, are currently ruins. The condition of the intact monuments is worsening quickly.
Thus, international experts are looking intensively into the causes of the poor technical condition of these important monuments and trying to find suitable solutions to rescue them. The Czech research team is participating in saving these monuments in Angkor as well, with the five‑year research project "Thermal Imaging and Structural Analysis of Sandstone Monuments in Angkor".
The main objective of the project is represented by an analysis of the stone structures' loading due to environmental temperature changes and the influence of this loading on the static safety of the monuments. In addition to the research work on-site in Angkor, the project includes numerical simulations of the structural behavior of the stone structures, which are mainly subjected to temperature effects.
The structural engineering software RFEM for FEM analysis and design by Dlubal Software was used to create numerical models and carry out the structural analysis.
Thus, international experts are looking intensively into the causes of the poor technical condition of these important monuments and trying to find suitable solutions to rescue them. The Czech research team is participating in saving these monuments in Angkor as well, with the five‑year research project "Thermal Imaging and Structural Analysis of Sandstone Monuments in Angkor".
The main objective of the project is represented by an analysis of the stone structures' loading due to environmental temperature changes and the influence of this loading on the static safety of the monuments. In addition to the research work on-site in Angkor, the project includes numerical simulations of the structural behavior of the stone structures, which are mainly subjected to temperature effects.
The structural engineering software RFEM for FEM analysis and design by Dlubal Software was used to create numerical models and carry out the structural analysis.
Czech research team in Angkor
Project Manager
Dr. Karel Kranda
Academy of Sciences of the Czech Republic
Nuclear Physics Institute
neutron.ujf.cas.cz
Head of Research
Doc. Ing. Jan Pašek, Ph.D.
Faculty of Civil Engineering of the Czech Technical University (CTU) in Prague
Department of Building Structures
kps.fsv.cvut.cz
Team Members
Ing. Jiří Svoboda
Ing. Hansley Pravin Gaya
Otakar Veverka

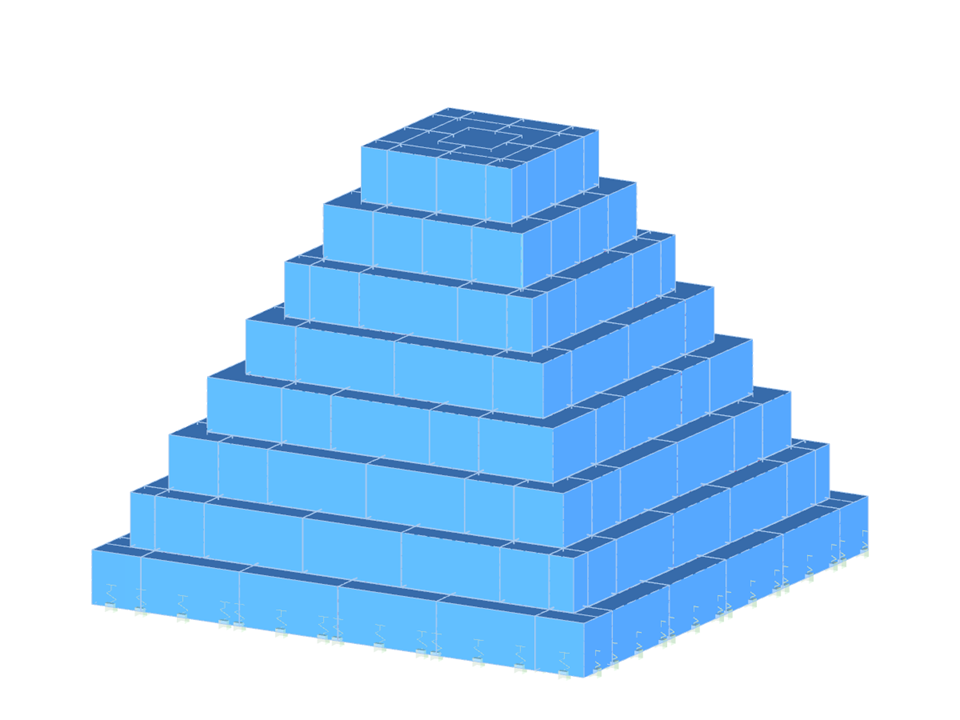

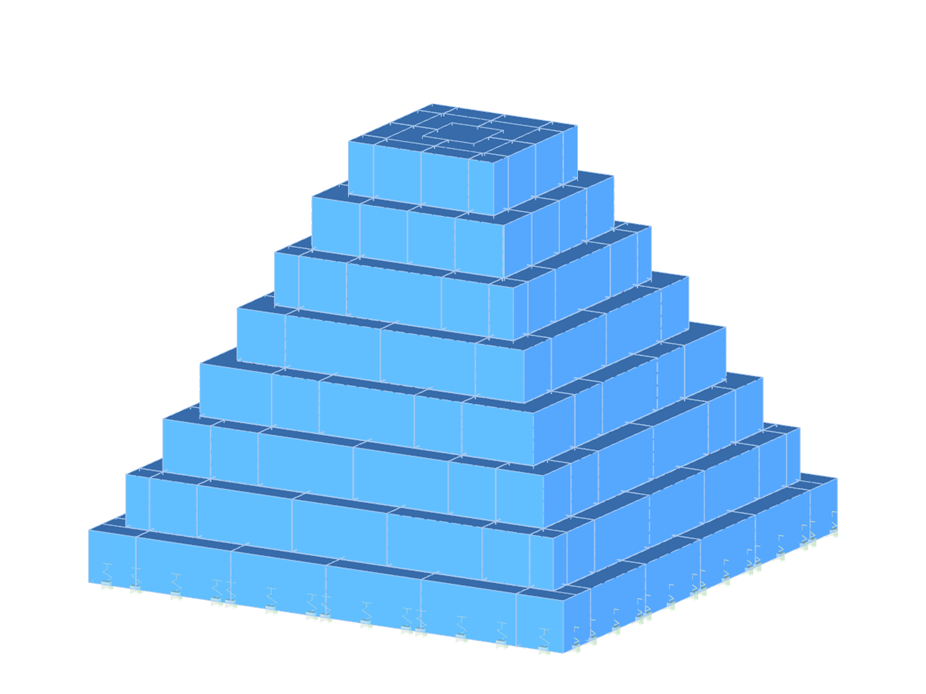

Pyramid
No Download Possible
Customer Project / View Only
| Number of Nodes | 1947 |
| Number of Lines | 4441 |
| Number of Surfaces | 2804 |
| Number of Solids | 497 |
| Number of Load Cases | 2 |
| Total Weight | 3.333 tons |
| Dimensions (Metric) | 2.018 x 2.018 x 1.614 m |
| Dimensions (Imperial) | 6.62 x 6.62 x 5.3 feet |
| Program Version | 4.04.10 |
