The model of a robust steel structure is ideal to be opened and analyzed in the finite element analysis software RFEM. It was presented in the free webinar “Top User Mistakes in RFEM and RSTAB” presented on February 4, 2021 (in English) and on January 28, 2021 (in German). Its well-thought-out structure enables practical simulation and error analysis, providing users with in-depth insights into typical application problems.
Model Used in
Overall
This page has 0 user ratings.
| 5 star | ||
| 4 star | ||
| 3 star | ||
| 2 star | ||
| 1 star |

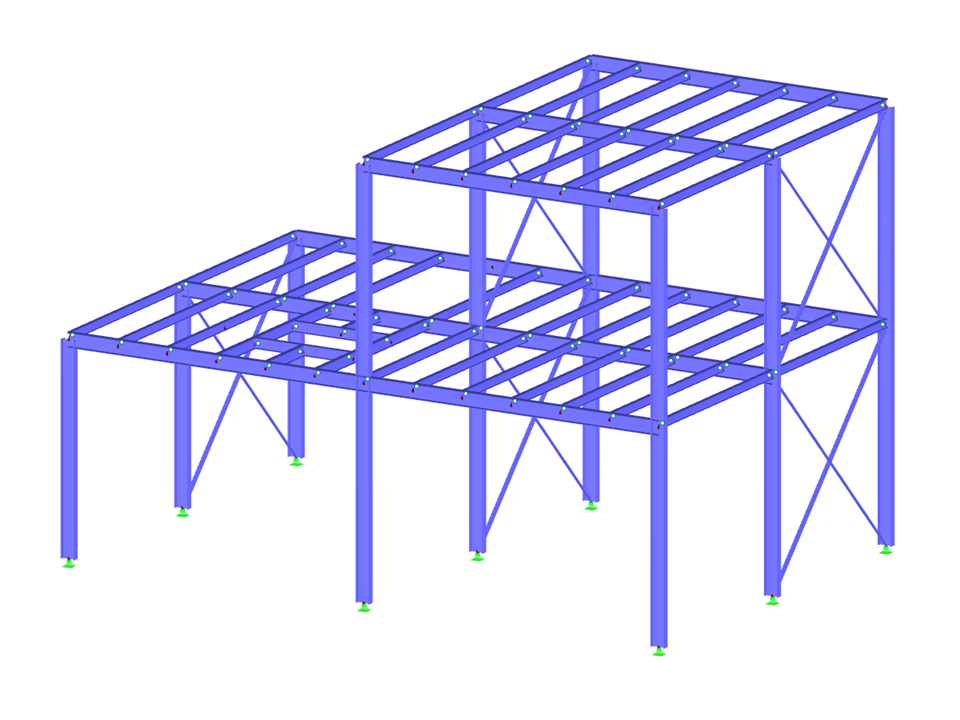

Steel Structure for RFEM Webinar
| Number of Nodes | 77 |
| Number of Lines | 129 |
| Number of Members | 129 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 1 |
| Total Weight | 7,015 t |
| Dimensions (Metric) | 12.117 x 8.117 x 8.113 m |
| Dimensions (Imperial) | 39.75 x 26.63 x 26.62 feet |
| Program Version | 5.24.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
