The timber structure of the school entrance is a glued-laminated half-frame. Web plate connections were used between the posts and the rafters. In the upper section, the rafters are supported at one end on a concrete wall.
The timber posts are hinged to the concrete floor and the frames run between each post.
A longitudinal beam further supports the roof purlins.
BMB-BET Moselle Bois, Saint Julien Lès Metz, France
www.bet-moselle-bois.fr

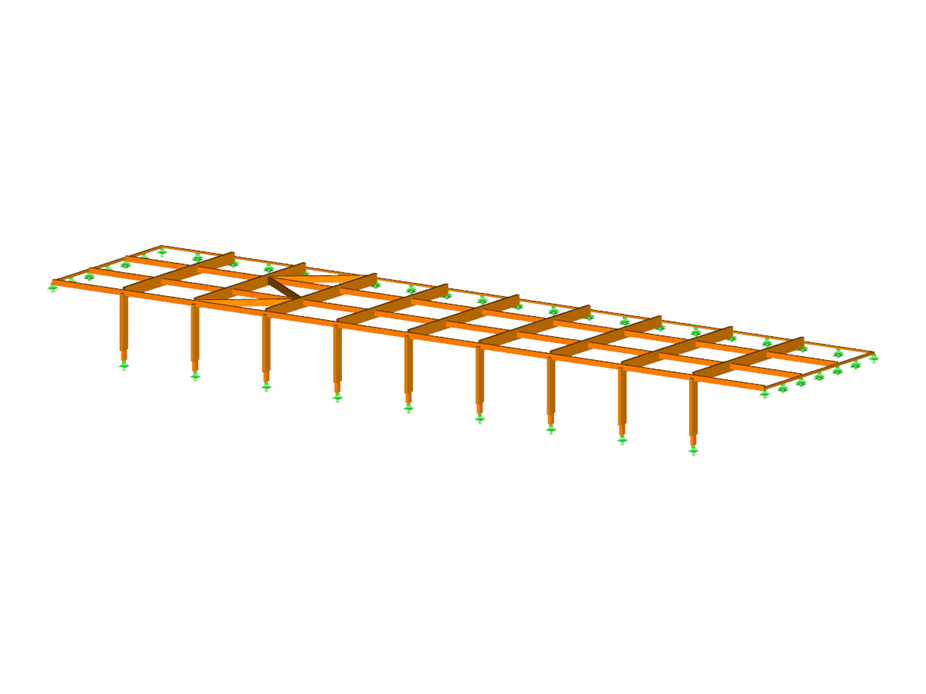

RFEM model of the frame in the day school (© BET Moselle Bois)
The timber posts are hinged to the concrete floor and the frames run between each post.
A longitudinal beam further supports the roof purlins.
BMB-BET Moselle Bois, Saint Julien Lès Metz, France
www.bet-moselle-bois.fr
RFEM model of the frame in the day school (© BET Moselle Bois)
Timber Frame
No Download Possible
Customer Project / View Only
| Number of Nodes | 78 |
| Number of Lines | 110 |
| Number of Members | 110 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 47 |
| Number of Result Combinations | 4 |
| Total Weight | 1.609 tons |
| Dimensions (Metric) | 23.503 x 6.253 x 2.003 m |
| Dimensions (Imperial) | 77.11 x 20.52 x 6.57 feet |
| Program Version | 5.23.01 |
