Following a three-year construction period, a stadium with 30,000 seats was completed in Uyo, Nigeria in 2014. Major national and international events will take place in this multifunctional two-tier stadium.
Uyo is the capital of Akwa Ibom State in southern Nigeria. About 400,000 inhabitants live here.
The steel structure of the stadium was calculated by formTL using RSTAB.
formTL Ingenieure für Tragwerk und Leichtbau GmbH, Radolfzell, Germany
www.form-TL.de
3D model (© formTL)
Uyo is the capital of Akwa Ibom State in southern Nigeria. About 400,000 inhabitants live here.
The steel structure of the stadium was calculated by formTL using RSTAB.
formTL Ingenieure für Tragwerk und Leichtbau GmbH, Radolfzell, Germany
www.form-TL.de
3D model (© formTL)

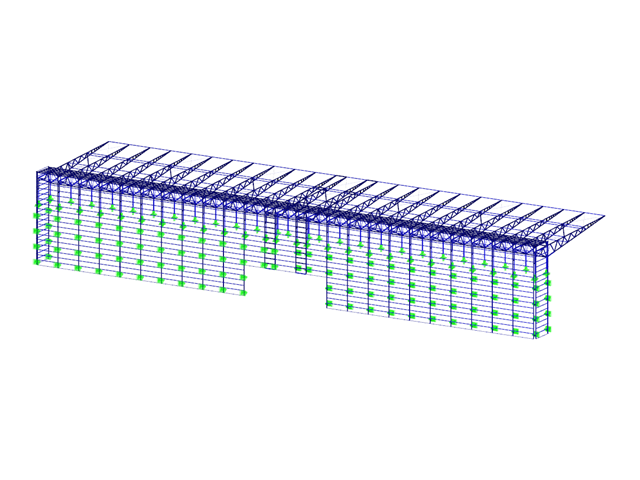

Submodels
.png?mw=640&hash=51e130534c79e38bdf2d9d13cf63c21c777fcf8c)

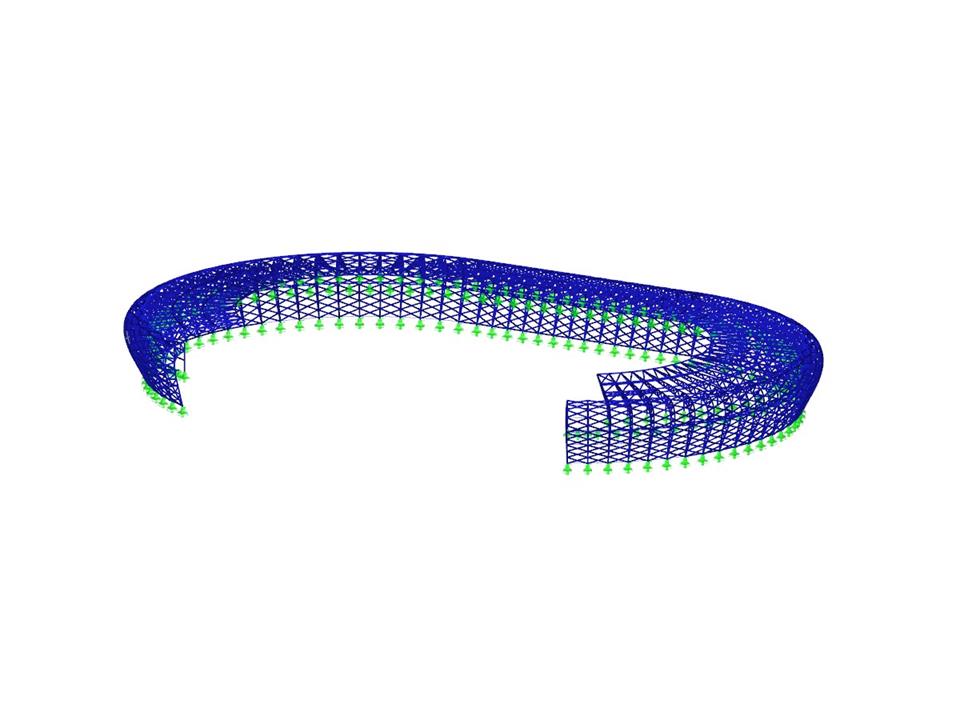

Steel Supporting Structure for Facade
No Download Possible
Customer Project / View Only
| Number of Nodes | 6024 |
| Number of Members | 12049 |
| Total Weight | 1196.835 tons |
| Dimensions (Metric) | 248.254 x 155.661 x 23.733 m |
| Dimensions (Imperial) | 814.48 x 510.7 x 77.86 feet |
| Program Version | 8.02.00 |
