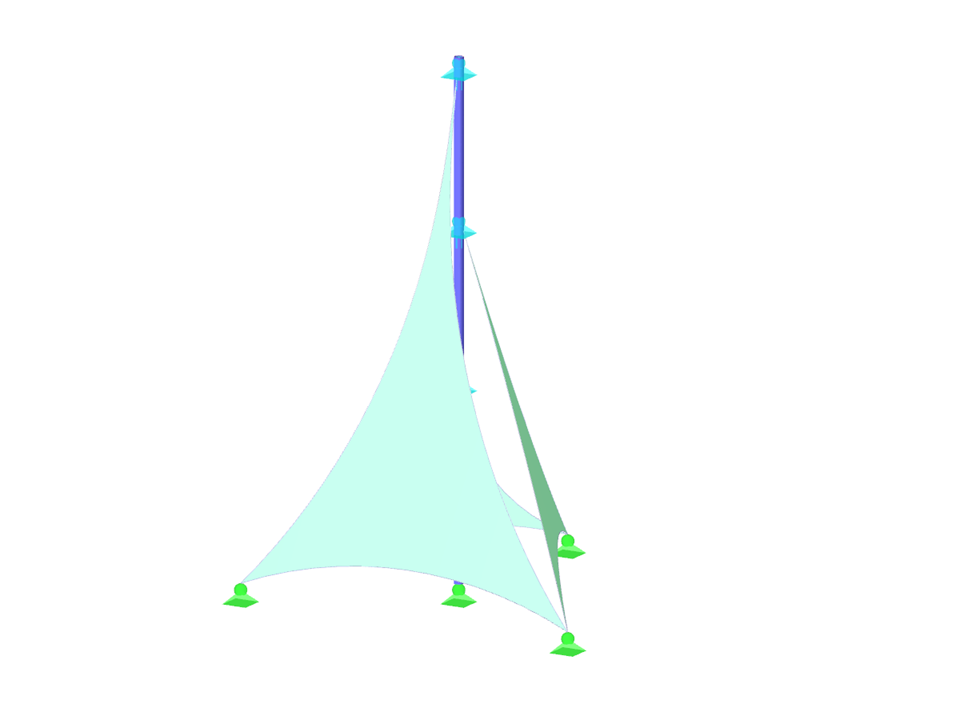

Membrane Tower
Membrane Tower
Number of Nodes | 33 |
Number of Lines | 28 |
Number of Members | 12 |
Number of Surfaces | 3 |
Number of Load Cases | 4 |
Number of Load Combinations | 1 |
Total Weight | 0.553 tons |
Dimensions (Metric) | 7.076 x 6.247 x 10.148 m |
Dimensions (Imperial) | 23.22 x 20.5 x 33.29 feet |
Program Version | 5.24.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
![Basic Shapes of Membrane Structures [1]](/en/webimage/009595/2419502/01-en-png-png.png?mw=512&hash=6ca63b32e8ca5da057de21c4f204d41103e6fe20)
![Figure 1: Wind Simulation on a Modern City Using RWIND](/en/webimage/042766/3563251/10.png?mw=512&hash=fe9104cccd682c4804f57c32af54a6db2de16ef8)
![Sample of Porous Surface With Different Porosities (different porosity photo at top from © www.weathersolve.com)](/en/webimage/038268/3454383/12.png?mw=512&hash=ccdb308161d2d23c43f97227afd2e0ab86130495)
![Windbreak Porous Fabric Structure in RFEM & RWIND](/en/webimage/036418/3433707/1002.jpg?mw=512&hash=61f0c6c01178418ff58a7634ab1f489e04e01422)
![Feature 002666 | Ponding Load Type](/en/webimage/043928/3609971/43928.png?mw=512&hash=a23958c2b4b6d28b10dc15b053d00a53b2f20036)
The Ponding load type allows you to simulate rain actions on multi-curved surfaces, taking into account the displacements according to the large deformation analysis.
This numerical rainfall process examines the assigned surface geometry and determines which rainfall portions drain away and which rainfall portions accumulate in puddles (water pockets) on the surface. The puddle size then results in a corresponding vertical load for the structural analysis.
For example, you can use this feature in the analysis of approximately horizontal membrane roof geometries subjected to rain loading.
Go to Explanatory Video![Considering Initial State](/en/webimage/023013/3113695/Consider_Initial_State.png?mw=512&hash=114555a41d6dca91bfa180e208bf9e4e8f566bed)
Compared to the RF-FORM-FINDING add-on module (RFEM 5), the following new features have been added to the Form-Finding add-on for RFEM 6:
- Specification of all form-finding load boundary conditions in one load case
- Storage of form-finding results as initial state for further model analysis
- Automatic assignment of the form-finding initial state via combination wizards to all load situations of a design situation
- Additional form-finding geometry boundary conditions for members (unstressed length, maximum vertical sag, low-point vertical sag)
- Additional form-finding load boundary conditions for members (maximum force in member, minimum force in member, horizontal tension component, tension at i-end, tension at j-end, minimum tension at i-end, minimum tension at j-end)
- Material types "Fabric" and "Foil" in material library
- Parallel form-findings in one model
- Simulation of sequentially building form-finding states in connection with the Construction Stages Analysis (CSA) add-on
![Surface Load](/en/webimage/023011/3113690/Surface_Loads.png?mw=512&hash=3609b87dc69ad0aa98206e116bb29e2e0c3b1bd4)
Once you activate the Form-Finding add-on in the Base Data, a form-finding effect is assigned to the load cases with the load case category "Prestress" in conjunction with the form-finding loads from the member, surface, and solid load catalog. This is a prestress load case. It thus mutates into a form-finding analysis for the entire model with all member, surface, and solid elements defined in it. You reach the form-finding of the relevant member and membrane elements amid the overall model by using special form-finding loads and regular load definitions. These form-finding loads describe the expected state of deformation or force after the form-finding in the elements. The regular loads describe the external loading of the entire system.
![Considering Initial State](/en/webimage/023013/3113695/Consider_Initial_State.png?mw=512&hash=114555a41d6dca91bfa180e208bf9e4e8f566bed)
Do you know exactly how the form-finding is performed? First, the form-finding process of the load cases with the load case category "Prestress" shifts the initial mesh geometry to an optimally balanced position by means of iterative calculation loops. For this task, the program uses the Updated Reference Strategy (URS) method by Prof. Bletzinger and Prof. Ramm. This technology is characterized by equilibrium shapes that, after the calculation, comply almost exactly with the initially specified form-finding boundary conditions (sag, force, and prestress).
In addition to the pure description of the expected forces or sags on the elements to be formed, the integral approach of the URS also enables a consideration of regular forces. In the overall process, this allows, for example, for a description of the self-weight or a pneumatic pressure by means of corresponding element loads.
All these options give the calculation kernel the potential to calculate anticlastic and synclastic forms that are in an equilibrium of forces for planar or rotationally symmetric geometries. In order to be able to realistically implement both types individually or together in one environment, the calculation provide you with two ways to describe the form-finding force vectors:
- Tension method - description of the form-finding force vectors in space for planar geometries
- Projection method - description of the form-finding force vectors on a projection plane with fixation of the horizontal position for conical geometries
