Aquamate, a leading manufacturer of corrugated water tanks in Australia, plans to enter the North American market by the end of 2016.
Therefore, it is necessary to verify that the tanks meet all US codes and standards before the end of the year.
Rocky Summit EC, USA
www.rockysummitec.com

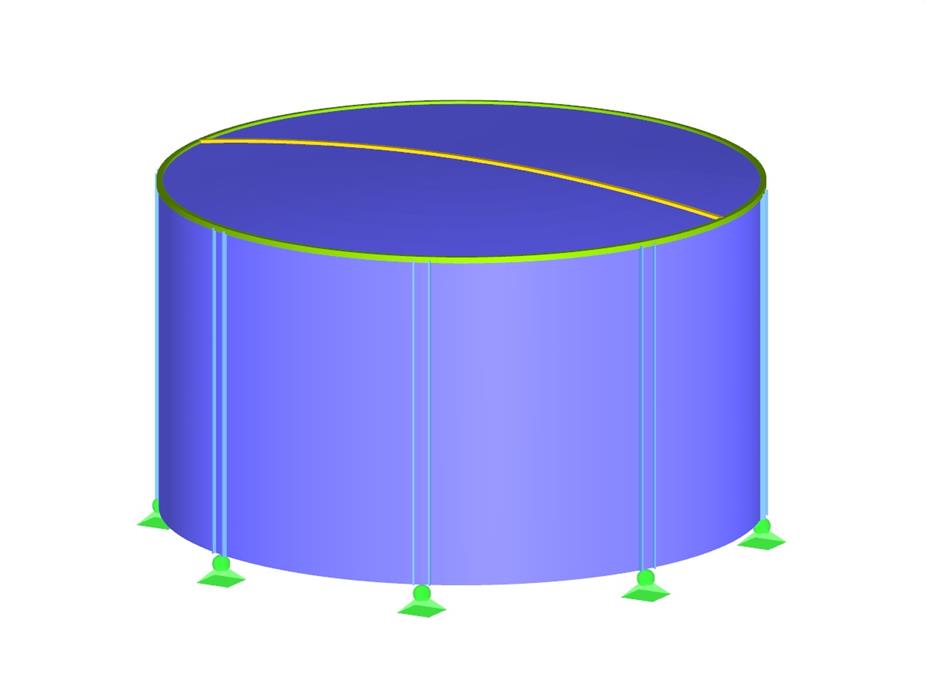

3D model of a water tank in RFEM (© Rocky Summit EC)
Therefore, it is necessary to verify that the tanks meet all US codes and standards before the end of the year.
Rocky Summit EC, USA
www.rockysummitec.com
3D model of a water tank in RFEM (© Rocky Summit EC)
Installation of Water Tanks
No Download Possible
Customer Project / View Only
| Number of Nodes | 654 |
| Number of Lines | 1133 |
| Number of Members | 131 |
| Number of Surfaces | 512 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 15 |
| Total Weight | 0.474 tons |
| Dimensions (Metric) | 5.744 x 5.744 x 3.440 m |
| Dimensions (Imperial) | 18.85 x 18.85 x 11.29 feet |
| Program Version | 5.07.05 |
