SEW-Eurodrive GmbH & Co KG, a German family-owned drive technology company, will extend its plant in Graben-Neudorf in 2019. The existing plant with a size of 1,184,030 ft² will be almost doubled...
Engineering Office Grassl GmbH
www.grassl-ing.de

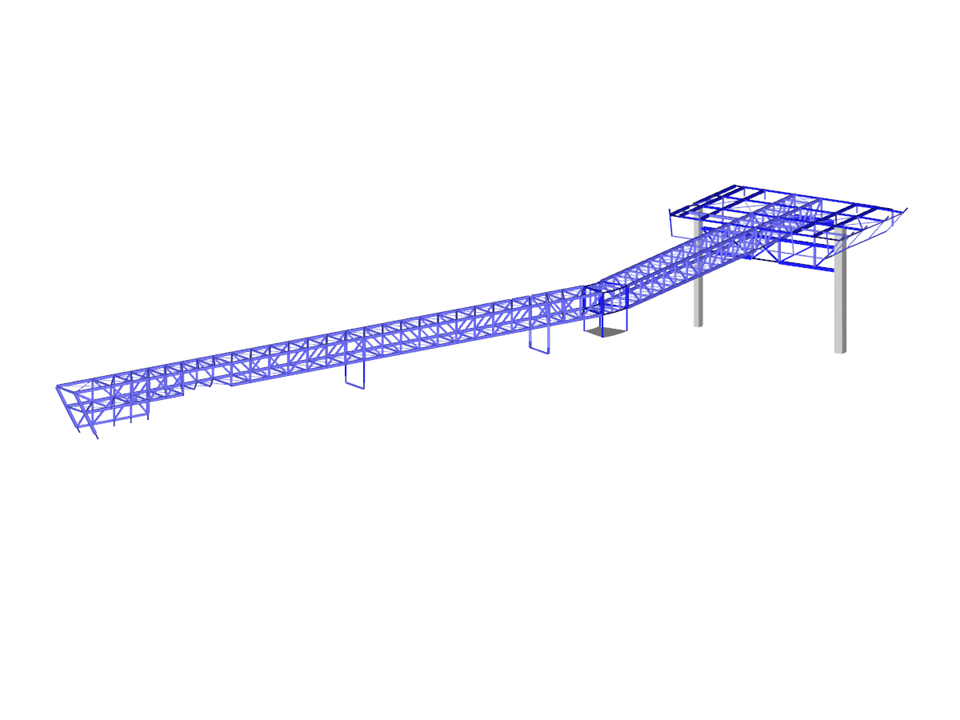

Media Bridge Made of Steel
No Download Possible
Customer Project / View Only
| Number of Nodes | 323 |
| Number of Lines | 868 |
| Number of Members | 851 |
| Number of Surfaces | 1 |
| Number of Load Cases | 20 |
| Number of Load Combinations | 489 |
| Number of Result Combinations | 6 |
| Dimensions (Metric) | 44.260 x 112.475 x 15.190 m |
| Dimensions (Imperial) | 145.21 x 369.01 x 49.84 feet |
| Program Version | 5.14.01 |
