The structural analysis of the spatial model was performed in RSTAB by Dietz Würtele Ingenieure, a customer of Dlubal Software.
Dietz Würtele Ingenieure, Fellbach, Germany
Consulting engineers in construction
www.dw-ingenieure.de

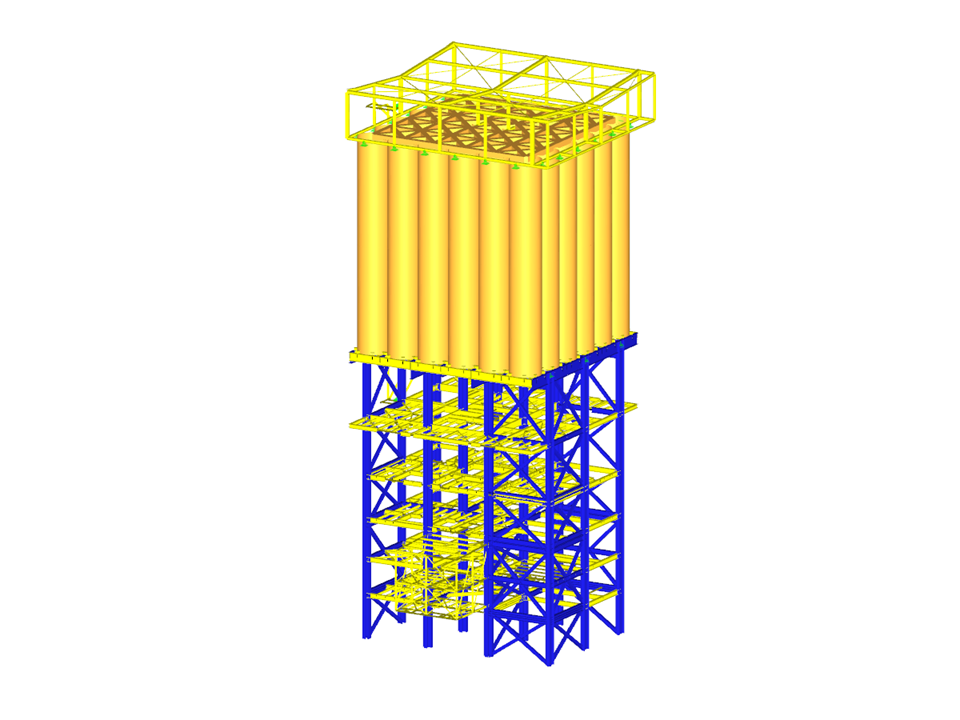

3D model - Supporting structure of the dry mixing plant in RSTAB (© Dietz Würtele)
Supporting Structure of Dry Mixing Plant
Number of Nodes | 1470 |
Number of Members | 2712 |
Number of Load Cases | 12 |
Number of Load Combinations | 218 |
Number of Result Combinations | 4 |
Total Weight | 596.049 tons |
Dimensions (Metric) | 22.750 x 20.900 x 49.100 m |
Dimensions (Imperial) | 74.64 x 68.57 x 161.09 feet |
Program Version | 8.06.11 |
