The architecture office Bergmeister-Wolf succeeded in designing a new workshop for wood carving in Val Gardena in South Tyrol.
As the triangulated facade could be used only partially for load application, the building represented a great challenge for the responsible timber construction engineer. However, Dlubal customer Schrentewein & Partner mastered this task by using primarily the inner parts of the building for load transfer.
Lignaconsult Schrentewein & Partner GmbH
Bolzano, Italy
lignaconsult.net

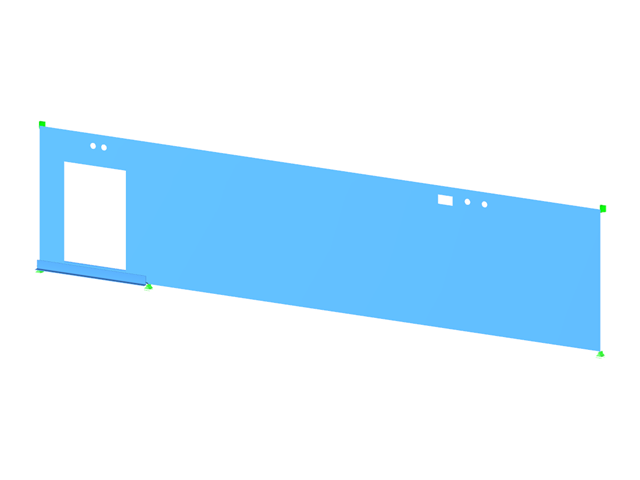

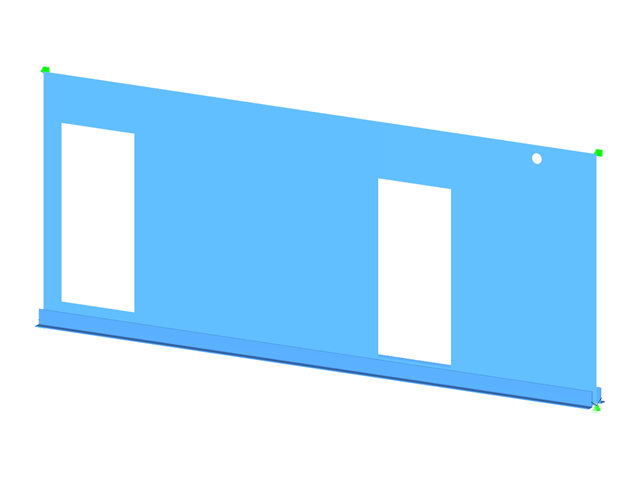

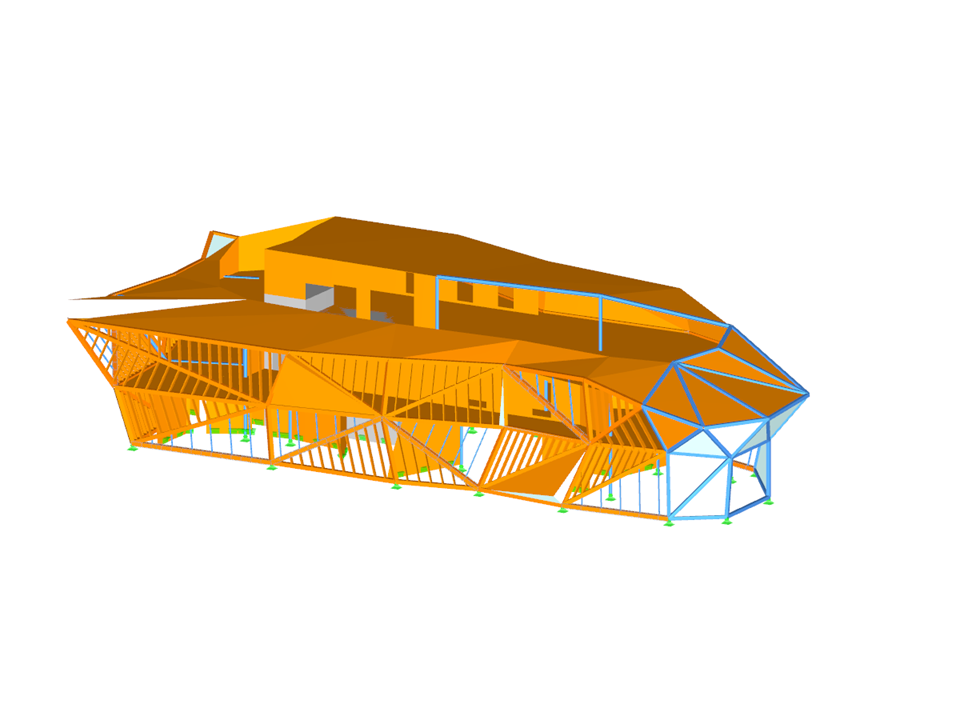

3D overall model (top) and design internal forces of a cross-laminated timber wall (bottom) in RFEM (© Schrentewein & Partner)
As the triangulated facade could be used only partially for load application, the building represented a great challenge for the responsible timber construction engineer. However, Dlubal customer Schrentewein & Partner mastered this task by using primarily the inner parts of the building for load transfer.
Lignaconsult Schrentewein & Partner GmbH
Bolzano, Italy
lignaconsult.net
3D overall model (top) and design internal forces of a cross-laminated timber wall (bottom) in RFEM (© Schrentewein & Partner)

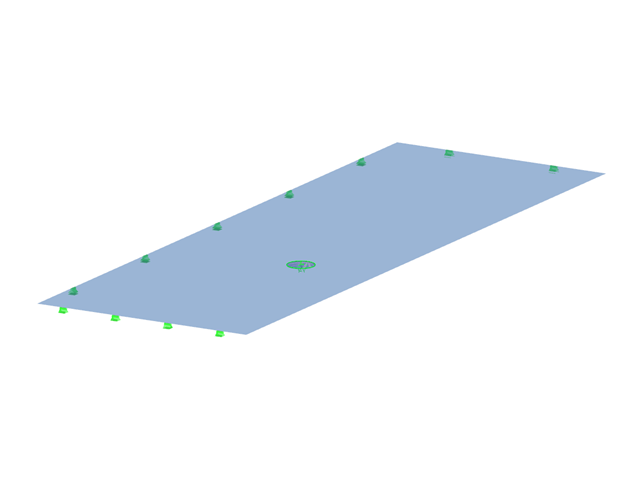

Submodels
Cross-Laminated Timber Building
No Download Possible
Customer Project / View Only
Number of Nodes | 1066 |
Number of Lines | 1786 |
Number of Members | 1243 |
Number of Surfaces | 161 |
Number of Load Cases | 4 |
Number of Result Combinations | 2 |
Total Weight | 434.657 tons |
Dimensions (Metric) | 43.543 x 20.077 x 10.186 m |
Dimensions (Imperial) | 142.86 x 65.87 x 33.42 feet |
Program Version | 5.01.00 |
