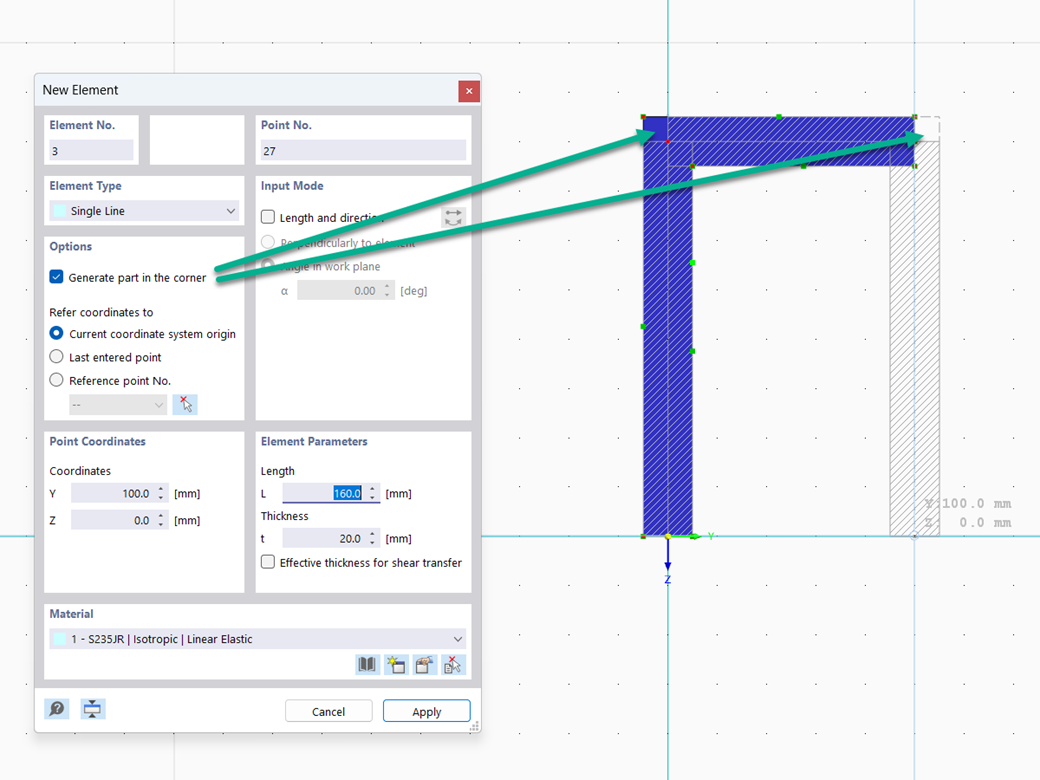

In the cross-section program RSECTION, you can generate parts in the corners when creating new elements.
