Answer:

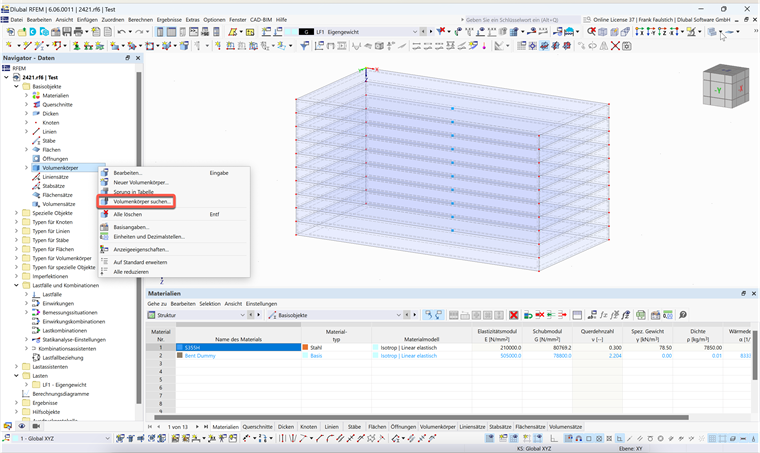

Right-click the "Solids" entry in the Data navigator and select the "Find Solid" entry from the menu.

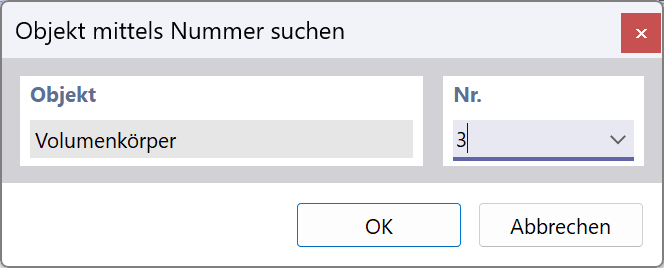

Enter the solid number and click OK.

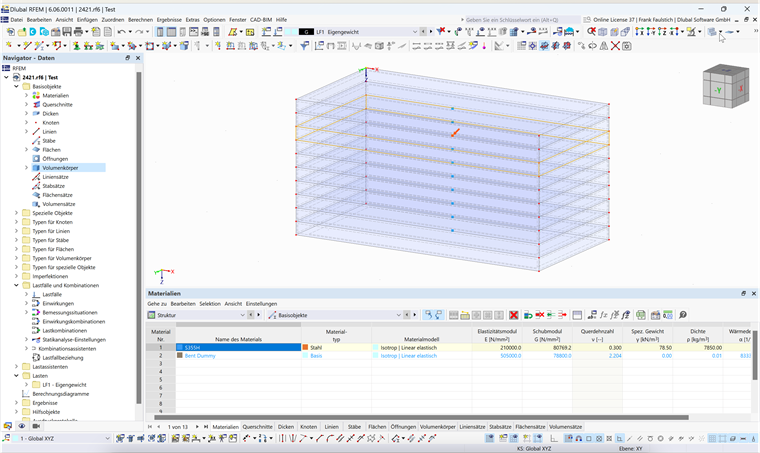

The solid is indicated by a red arrow in the graphic.
