Question

How can I define which internal forces and deformations are displayed by default in the result diagrams?

Answer:

You can save the settings in the navigator separately for each object (member, continuous member, line support, section, line hinge, line release). To do this, proceed as follows:

  1. First, open the result diagram of the object to be analyzed (member, continuous member, line support, section, line hinge, line release).
  2. Then, select the desired internal forces, deformations, and so on.

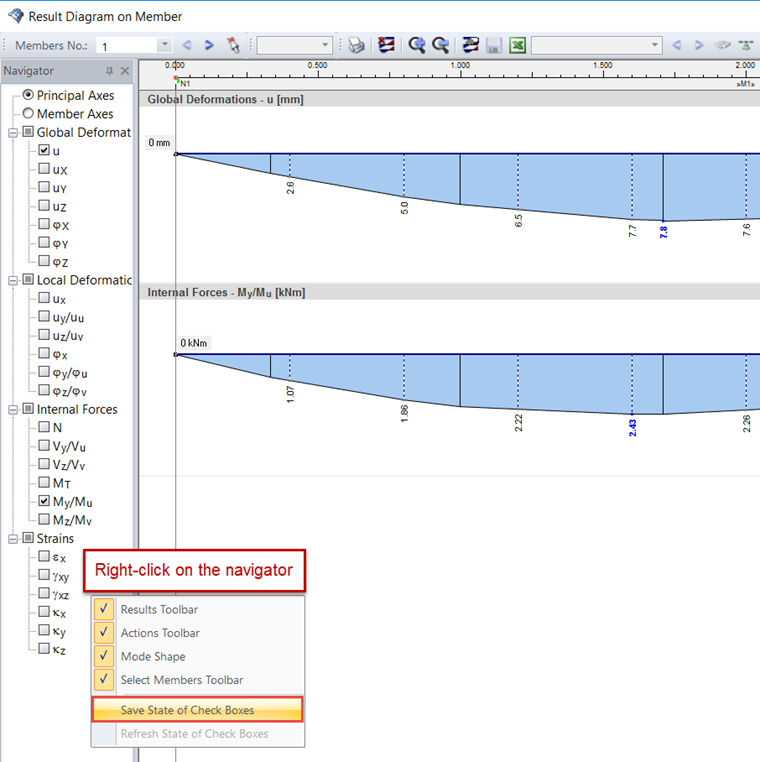

  3. Finally, right-click the navigator and select "Save Check Box State" (Image 01).

FAQ|002310
EN-US | Flag FAQ
[EN] FAQ 002310 | How can I define which internal forces and deformations are displayed by default in ...
Modifying Default Setting of Result Diagrams
Modifying Default Setting of Result Diagrams

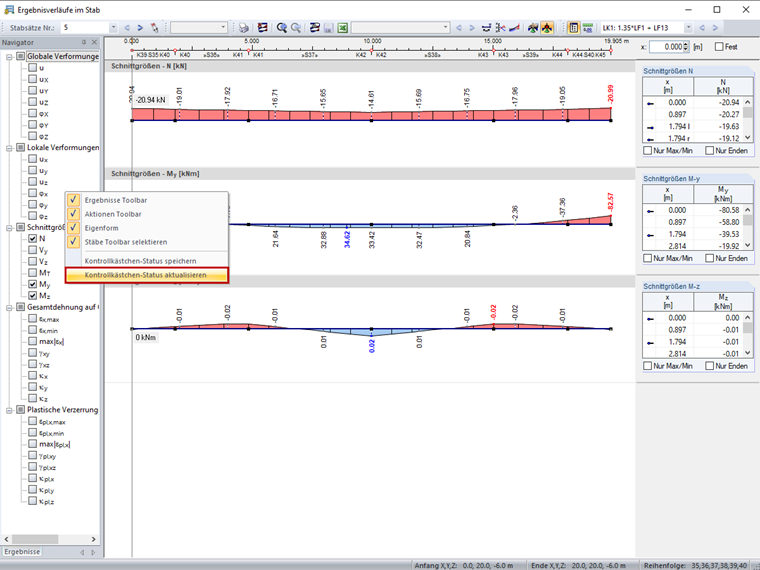

This setting is now applied to all positions. With "Update check box status" (the command is now available), you can reset the settings to the default settings (Image 02).

Reset of Setting to Default
Reset of Setting to Default

The video shows how to save the settings for continuous members (display of My and Mz) and members (display of u, uX, uY, and uZ). The settings for the members are then reset to the default setting.

;
