Tips and Tricks Using Navigator and Printout Report in RFEM

Tips and Tricks for Display Properties and Printout Report of RFEM and RSTAB
Tips and Tricks Using Navigator and Printout Report in RFEM
2015-04-30
English
Free
EN-US | Flag Event

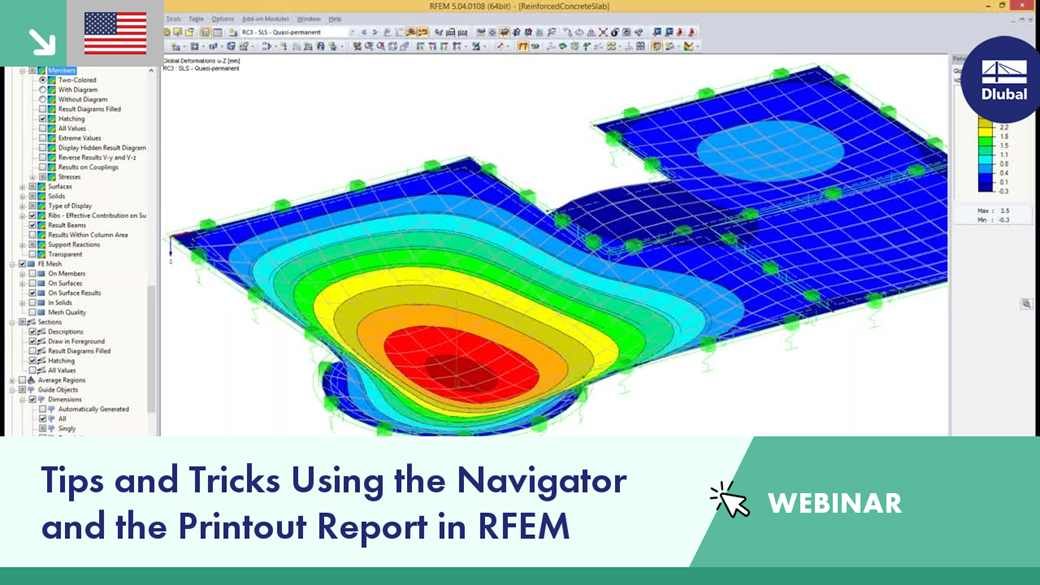

Webinar: Tips and Tricks Using the Navigator and the Printout Report in RFEM
  • Several options in the Display Navigator
  • Creating and saving views
  • Single print and series images in the printout report
  • Modification of graphics
  • Filtering of results
  • Inserting text and figures
Time Schedule
00:00
Introduction
02:25

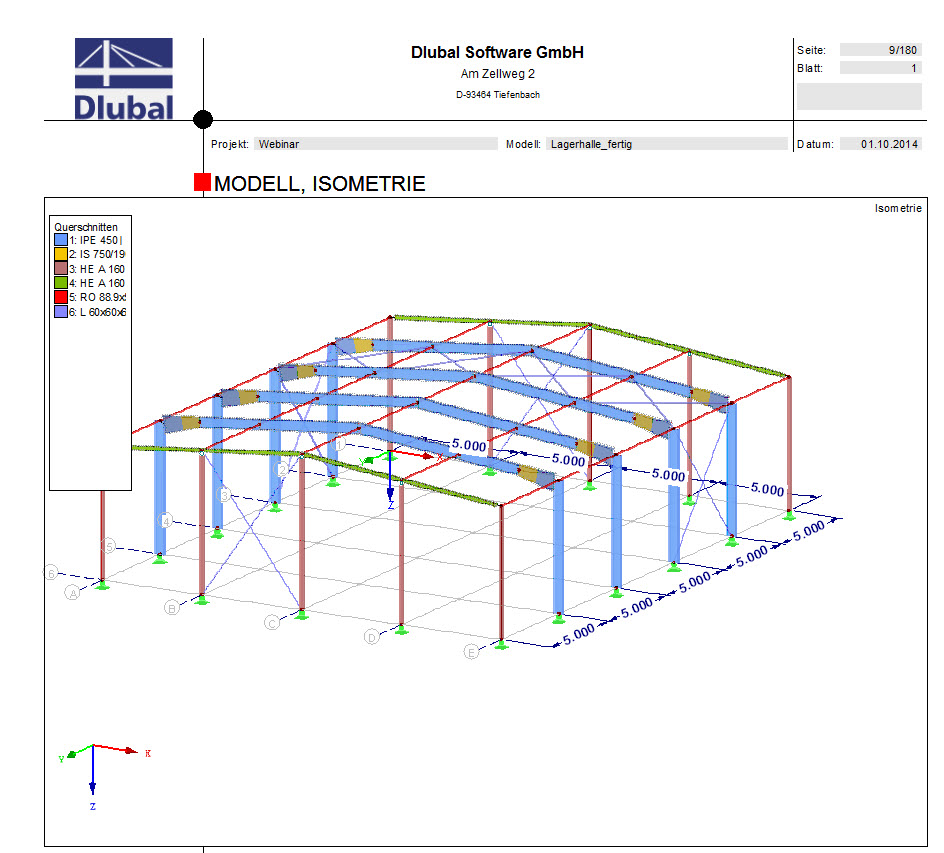

Example of a hall model
03:45
Work plane settings and line grid
07:30
Project Navigator - Display
12:45
Project Navigator - Views
16:30
Printout reportTemplates and selectionCover and header settingsInserting text blocks and imagesGraphic printout and modificationMass print
45:50
Graphics in 3D PDF
47:50
Closing words
;
