LIMITS: Comparison of Results with Limit States

Add-on Module for RSTAB 8

How may I help you?

Do you have any questions about Dlubal products or need assistance in selecting the right one for your project?

I'm here to help. You can easily reach me through the contact options provided below.

Looking forward to hearing from you!

Amy Heilig, PE

CEO – USA Subsidiary | Sales & Technical Support Engineer

+1 267 702 2815

[email protected] Ask Individual Question

Pricing

LIMITS Add-on Module for RSTAB 8

LIMITS analyzes the load bearing capacity of members, member ends, nodes, nodal supports, and surfaces by means of a defined ultimate load capacity.

The extensible library includes timber fasteners (SIHGA, Sherpa, WÜRTH, Simpson StrongTie, KNAPP) and steel fasteners (standardized connections in steel building design according to EC 3, M-connect).

Comparison of Results with Defined Limit States

Total items: 3

Features

Design of member ends, members, nodal supports, nodes, and surfaces
Consideration of specified design areas
Check of cross-section dimensions
Design according to EN 1995-1-1 (European Timber Standard) with the respective National Annexes + DIN 1052 + DSTV DIN EN 1993-1-8 + ANSI / AWC - NDS 2015 (US Standard)
Design of various materials, such as steel, concrete, and others
No necessary linking to specific standards
Extensible library including timber fasteners (SIHGA, Sherpa, WÜRTH, Simpson StrongTie, KNAPP, PITZL) and steel fasteners (standardized connections in steel building design according to EC 3, M-connect, PFEIFER, TG-Technik)
Ultimate load capacities of timber beams by the companies STEICO and Metsä Wood available in the library
Connection to MS Excel
Optimization of connecting elements (the most utilized element is calculated)

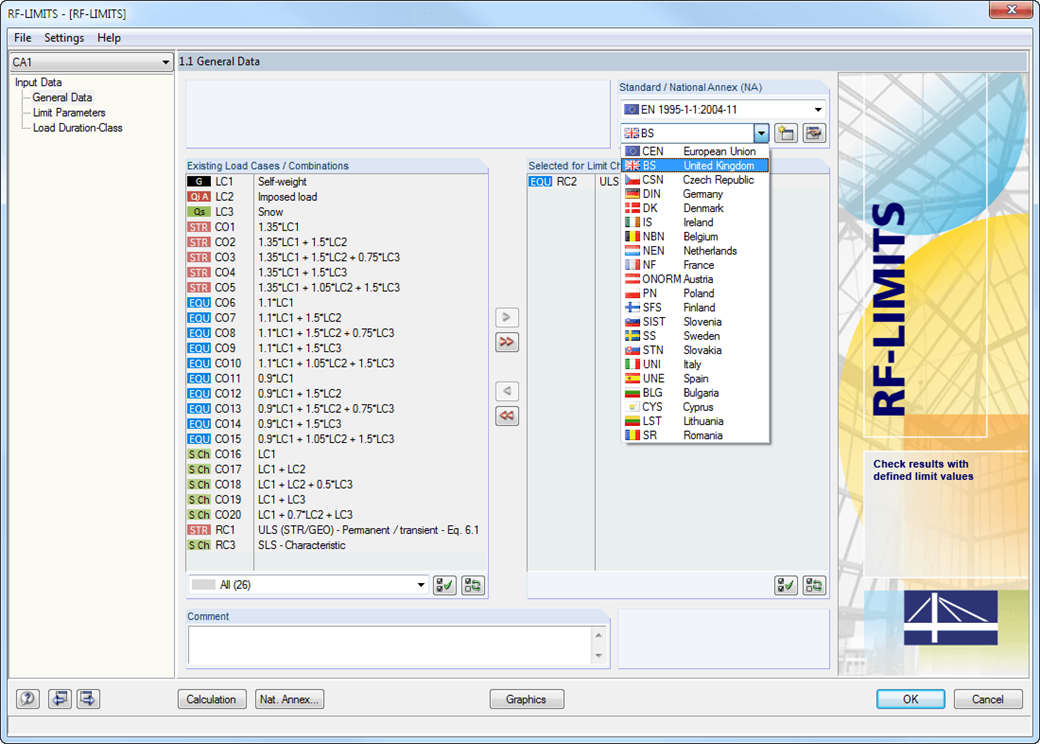

After selecting the loads required for the design and, if necessary, the desired standard for the design, you can define the limit loads in Window 1.2 Limit Parameters. In addition to the manufacturers listed in the limit library, it is possible to add user-defined entries.

After selecting all limit elements for the design, you can optionally define the load duration class (LDC). However, this module window is available only for timber fastener design according to EN 1995-1-1 or DIN 1052.

Results

First, the governing design checks of the connection for the respective load case, and load combination, or result combination are displayed. In addition, it is possible to display results separately for sets of members, surfaces, cross-section, members, nodes, and nodal supports.

You can use a filter to further reduce the displayed results and thus present them in a clearer way.
