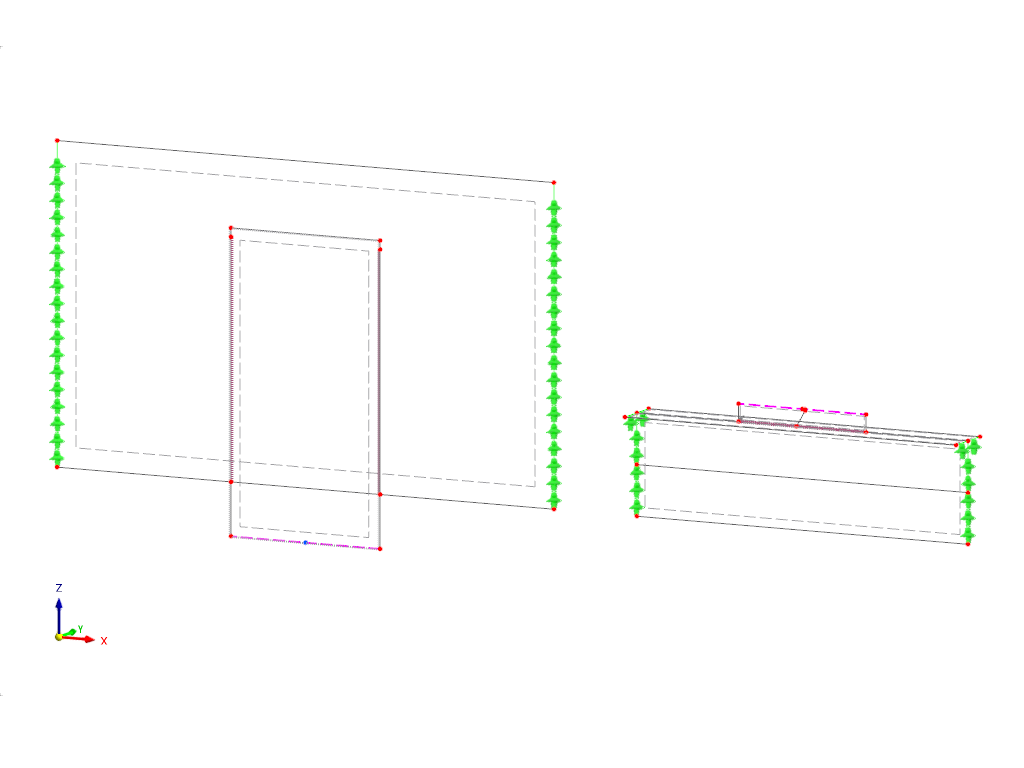

This model demonstrates the design of fillet welds according to AISC 360-22 using RFEM 6. The Stress-Strain Analysis add-on is utilized to determine weld stresses between surfaces, and the stress ratio is calculated based on the standard's stress limits. Two examples from AISC Volume 1: Design Examples are included to illustrate the application.
Model Used in
AISC Fillet Weld Design
| Number of Nodes | 31 |
| Number of Lines | 33 |
| Number of Members | 4 |
| Number of Surfaces | 6 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 0.216 tons |
| Dimensions (Metric) | 2,794 x 1,067 x 0,150 m |
| Dimensions (Imperial) | 9.17 x 3.5 x 0.49 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
