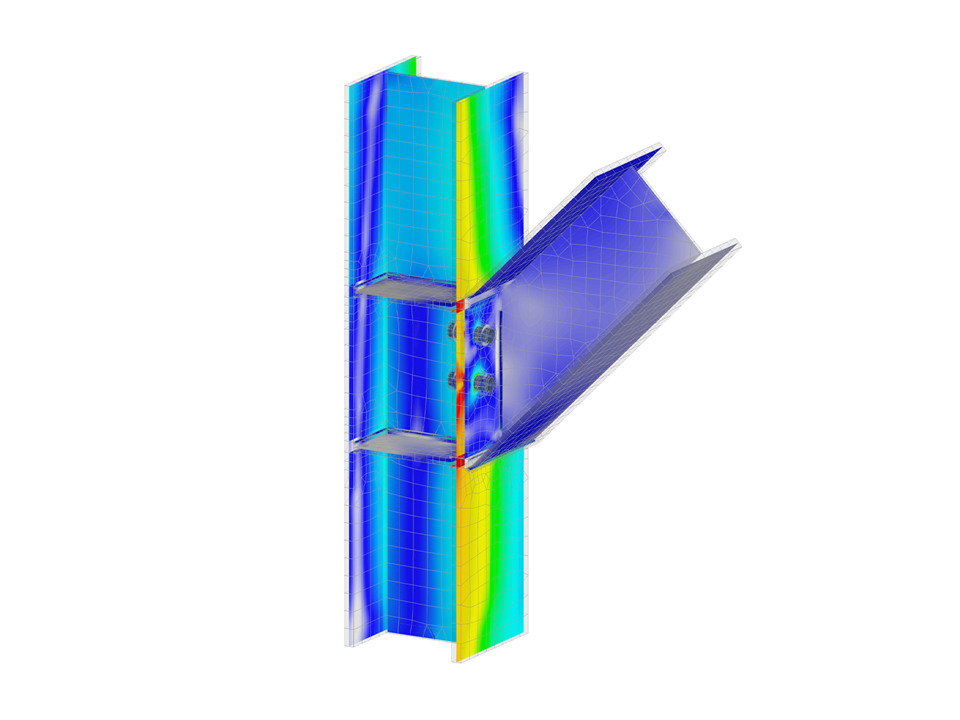

RFEM model of the steel connection of a diagonal member to an I-column. The model is exported along with the transferred internal forces from the Construction Stages model.
Steel Connection of Diagonal Member to Column
| Number of Nodes | 633 |
| Number of Lines | 535 |
| Number of Members | 272 |
| Number of Surfaces | 54 |
| Number of Solids | 0 |
| Number of Load Cases | 16 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.049 tons |
| Dimensions (Metric) | 0.442 x 0.688 x 0.160 m |
| Dimensions (Imperial) | 1.45 x 2.26 x 0.52 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
