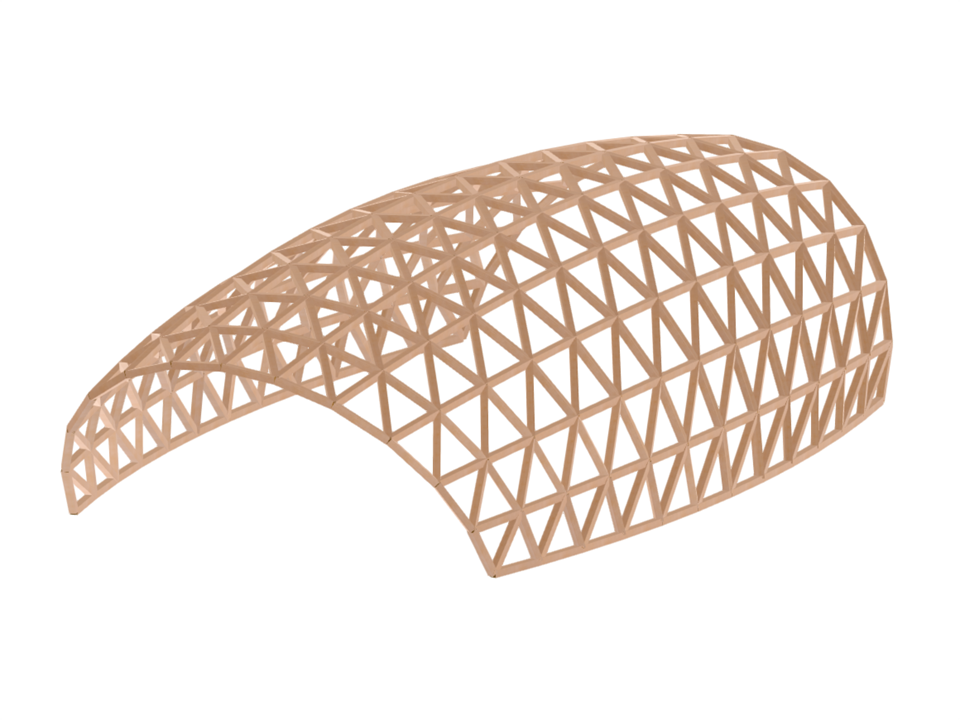

Structural model made of timber, featuring an arched, tunnel-like shape with a large, semi-cylindrical surface. The structure consists of a grid-like framework composed of triangular elements, creating a mesh that forms the surface of the model. The timber framework is characterized by its natural wood finish, showcasing the material's aesthetic warmth and organic qualities.
Timber Grid Shell
| Number of Nodes | 169 |
| Number of Lines | 456 |
| Number of Members | 456 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 3 |
| Number of Result Combinations | 0 |
| Total Weight | 6.414 tons |
| Dimensions (Metric) | 12.000 x 5.500 x 21.000 m |
| Dimensions (Imperial) | 39.37 x 18.04 x 68.9 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
