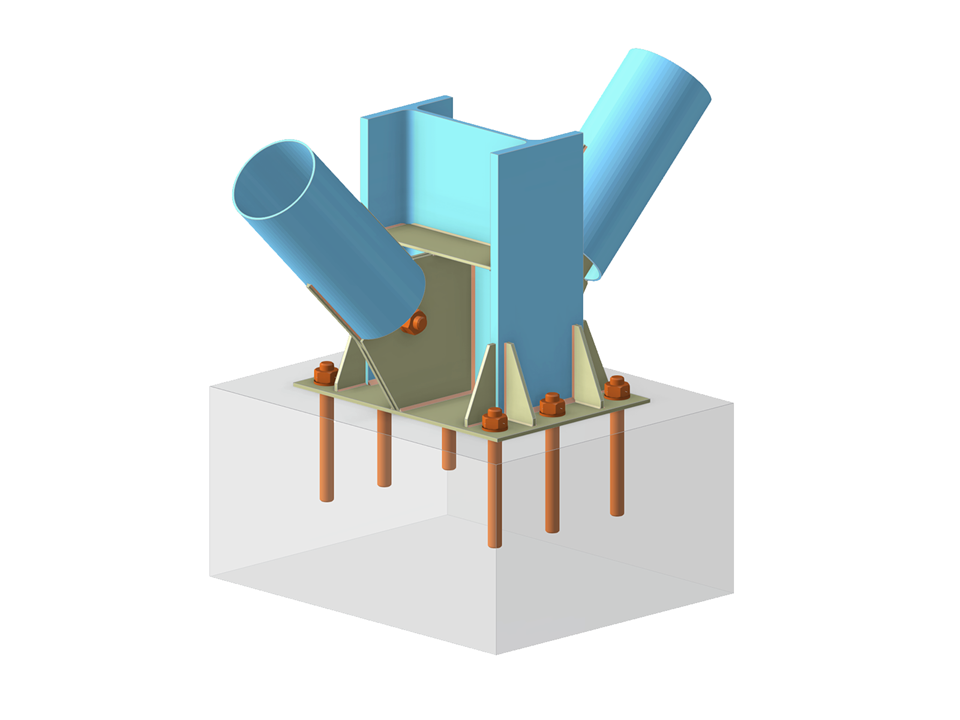

RFEM model of a steel connection between an I-type column with connected diagonals made of steel CHS and a concrete column foundation. The example is modeled using the Steel Joints add-on.This model is created based on a real implementation.
Steel Connection of Column to Concrete Foundation
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 0.584 tons |
| Dimensions (Metric) | 0,000 x 2,000 x 4,000 m |
| Dimensions (Imperial) | 0 x 6.56 x 13.12 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
