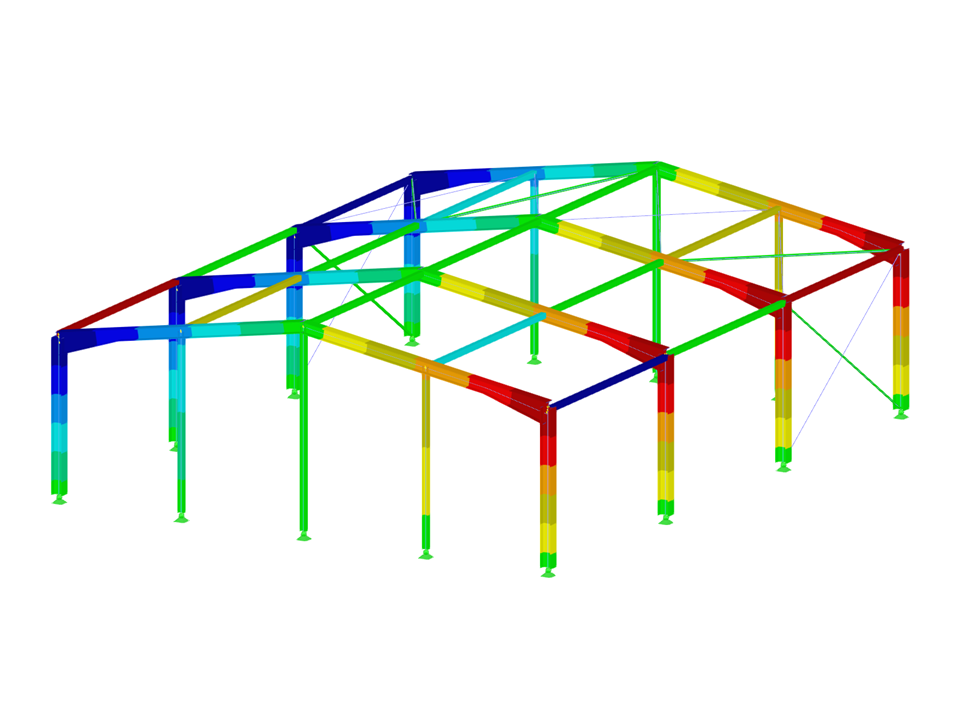

3D steel structure including design acc. to CSA S16:19.
Model Used in
Steel Hall Structure | CSA S16:19
| Number of Nodes | 42 |
| Number of Lines | 49 |
| Number of Members | 49 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 26 |
| Number of Result Combinations | 0 |
| Total Weight | 8.345 tons |
| Dimensions (Metric) | 12.000 x 4.500 x 15.000 m |
| Dimensions (Imperial) | 39.37 x 14.76 x 49.21 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
