Download the concrete and steel construction stage analysis model here and open it with the FEA software RFEM.
This model is used in the free webinar 'Construction Stages Analysis in RFEM 6' on October 19, 2022 (English).

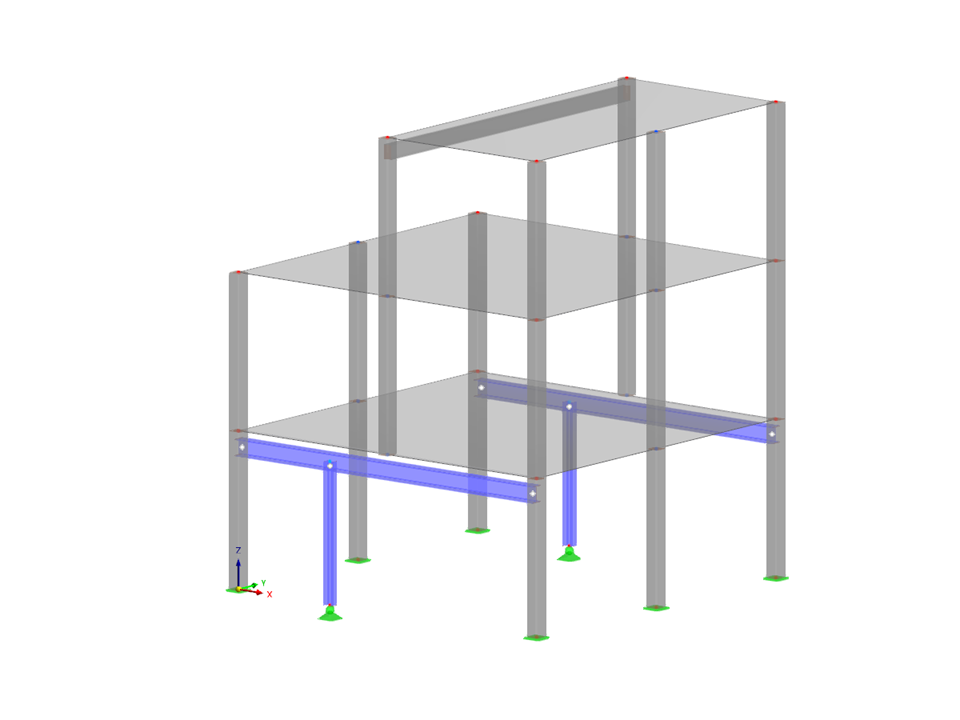

Steel and Concrete Building | Construction Stages Analysis (USA)
Number of Nodes | 33 |
Number of Lines | 35 |
Number of Members | 26 |
Number of Surfaces | 3 |
Number of Solids | 0 |
Number of Load Cases | 2 |
Number of Load Combinations | 12 |
Number of Result Combinations | 0 |
Total Weight | 126.441 tons |
Dimensions (Metric) | 7.925 x 10.088 x 7.925 m |
Dimensions (Imperial) | 26 x 33.1 x 26 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
