Download the model of a slab made of multilayer surfaces here, and open it with the structural FEA software RFEM.
This model is used in the free webinar "Calculation of Multilayer Surfaces and Using Building Models in RFEM 6" on September 28, 2022 (in English; on September 20, 2022 in German).
Model Used in
- Analysis of Multilayer Surfaces and Application of Building Models in RFEM 6
- Most Frequently Asked Questions Answered by Dlubal Support Team | February 2023
- Defining Multilayer Surfaces in RFEM 6
- Analysis of Multilayer Surfaces and Application of Building Models in RFEM 6
- Most Frequently Asked Questions Answered by Dlubal Support Team | February 2023

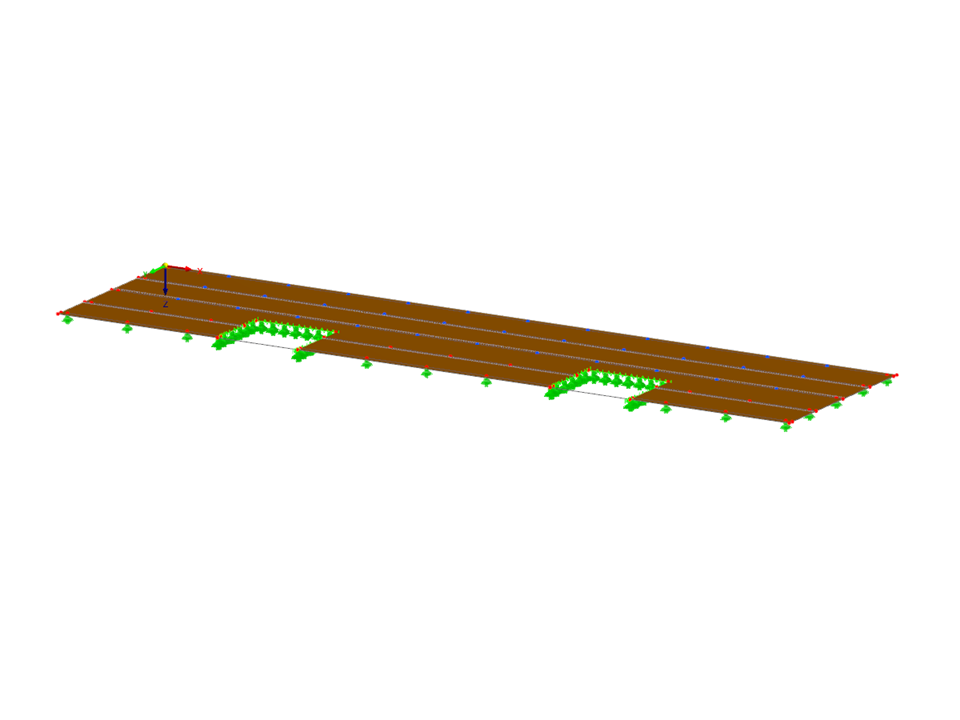

Slab Made of Multilayer Surfaces
| Number of Nodes | 87 |
| Number of Lines | 57 |
| Number of Members | 0 |
| Number of Surfaces | 6 |
| Number of Solids | 0 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 48 |
| Number of Result Combinations | 0 |
| Total Weight | 52.185 tons |
| Dimensions (Metric) | 55.000 x 0.000 x 14.000 m |
| Dimensions (Imperial) | 180.45 x 0 x 45.93 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
